Non Stock

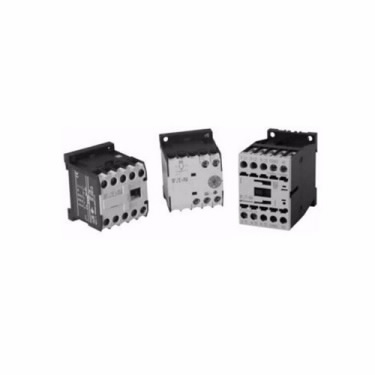

XTRM10A22T Miniature IEC Control Relay, 10 A, 10 Pin, 2NO-2NC Contact, 24 VAC V Coil
| Branch Name | Available |
|---|
EATON new line of XT relays and timers includes mini and standard frame control relays and auxiliary contacts, mini electronic on-delay and multi-function timers and an electronic star-delta (wye-delta) timer for use in star-delta (wye-delta) combinations. Because XT meets UL, CSA and CE standards, it is the perfect product solution for IEC applications all over the world. The compact, space saving and easy to install XT line of IEC contactors and starters is the efficient and effective solution for customer applications.
EATON IEC Control Relay, Miniature, Series: XT Series, 10 A, 50/60 Hz, 24 VAC Coil, 2NO-2NC, 6 A at 240 VAC, 2.5 A at 24 VDC Contact, 10 Pins, 4 Pole, DIN Rail Mount, Screw Terminal, IP20, -13 to 122 deg F, 54 mm L x 45 mm W x 58 mm H
| Contact Rating | : | 6 A at 240 VAC, 2.5 A at 24 VDC |
| Dimensions | : | 54 mm L x 45 mm W x 58 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Number of Poles | : | 4 |
| Series | : | XT Series |
| Temperature Rating | : | -13 to 122 deg F |
| Terminal Type | : | Screw |
| Type | : | Miniature |
| Amperage Rating | : | 10 A |
| Number of Pins | : | 10 |
| Contact Form | : | 2NO-2NC |
| Coil Voltage | : | 24 VAC |
