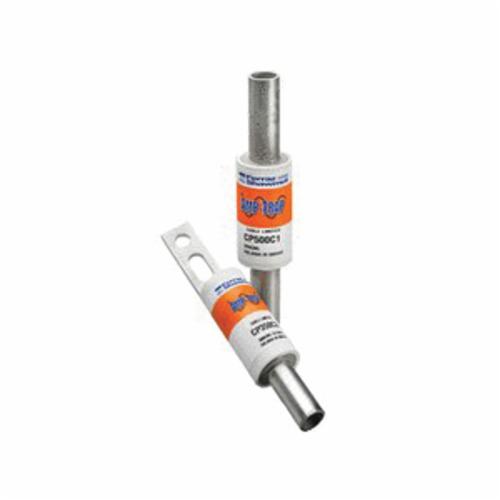

CP500C5 Type C5 Current Limiting Cable Protector Fuse, 600 VAC, 200 kA, Cylindrical Body
| Branch Name | Available |
|---|
Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current limiting with a 200000 A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, Class J fuses can be used.
Ferraz Shawmut Cable Protector Fuse, Type C5 Current Limiting, Series: CP Series, 600 VAC, 200 kA Interrupt, Straight Bus to Offset Bus Terminal, Bolt-On Mounting, Cylindrical Body, Fiberglass, 1.88 in Dia x 10.37 in L Body
| Body Size | : | 1.88 in Dia x 10.37 in L |
| Material | : | Fiberglass |
| Mounting Type | : | Bolt-On |
| Series | : | CP Series |
| Terminal Type | : | Straight Bus to Offset Bus |
| Type | : | Type C5 Current Limiting |
| Voltage Rating | : | 600 VAC |
| Interrupt Rating | : | 200 kA |
| Body Type | : | Cylindrical |
