Non Stock

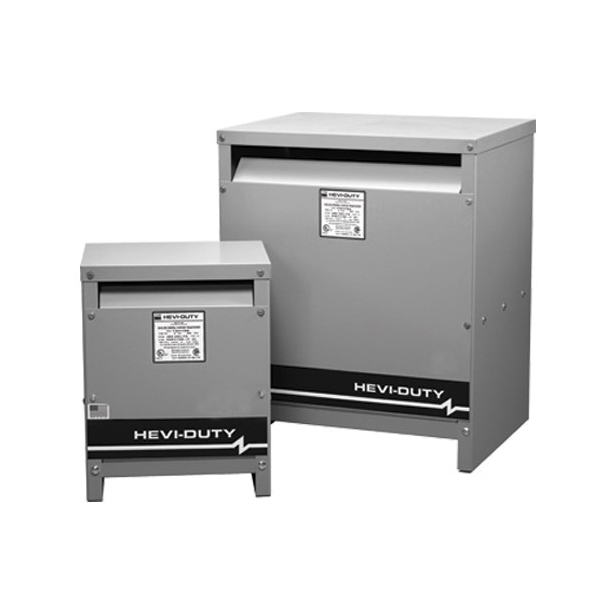

ES5H15S Ventilated Distribution Transformer With WS-10 Optional Weather Shield, 240/480 VAC Primary, 208/120 VAC Secondary, 15 kVA, 60 Hz, 1 Phase
| Branch Name | Available |
|---|
SolaHD Distribution Transformer, Ventilated, 240/480 VAC Primary, 208/120 VAC Secondary, 15 kVA, 60 Hz, 1 Phase, 62.5/31.3/125 A Maximum, 2 Taps, Wall Mount, 428 deg F, NEMA 3R, 150 deg C, Stainless Steel Housing, 21 in L x 33 in W x 28 in H
| Dimensions | : | 21 in L x 33 in W x 28 in H |
| Enclosure Type | : | NEMA 3R |
| Housing Material | : | Stainless Steel |
| Insulation | : | 428 deg F |
| Maximum Amperage Rating | : | 62.5/31.3/125 A |
| Mounting Type | : | Wall |
| Number of Taps | : | 2 |
| Temperature Rating | : | 150 deg C |
| Type | : | Ventilated |
| Primary Voltage | : | 240/480 VAC |
| Secondary Voltage | : | 208/120 VAC |
| Power Rating | : | 15 kVA |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 |
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d0b5103435f780cb0876d505ba635bcfdbc96fb67f0cb619f0fecb35ba3a2c94.pdf
Warranty Information
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_21cae2fd5ea78f898de07ad333189f6f6ad1386630caabf3caf3233c7f88e152.pdf
