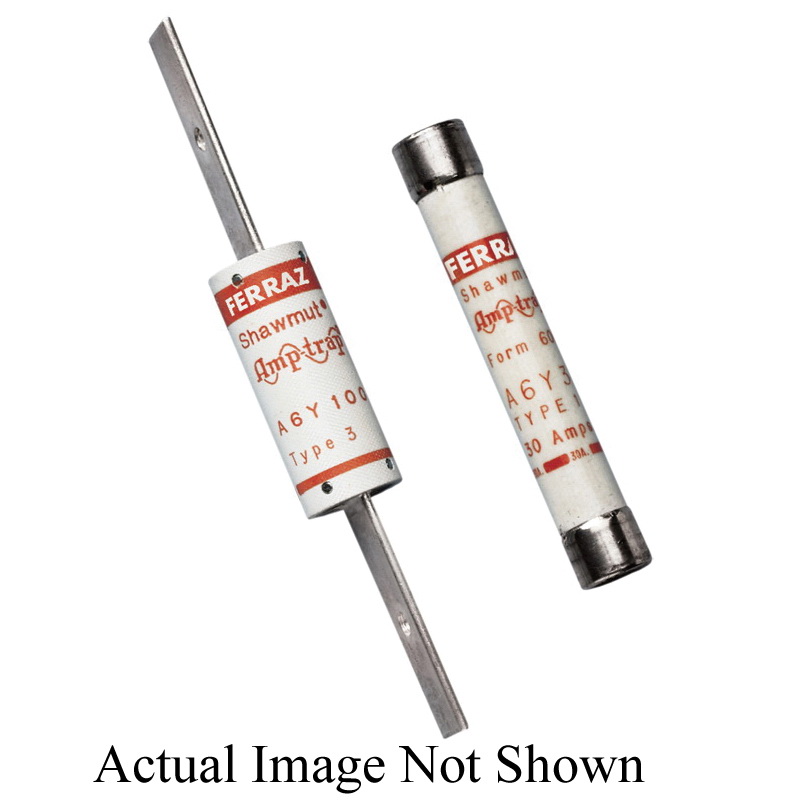

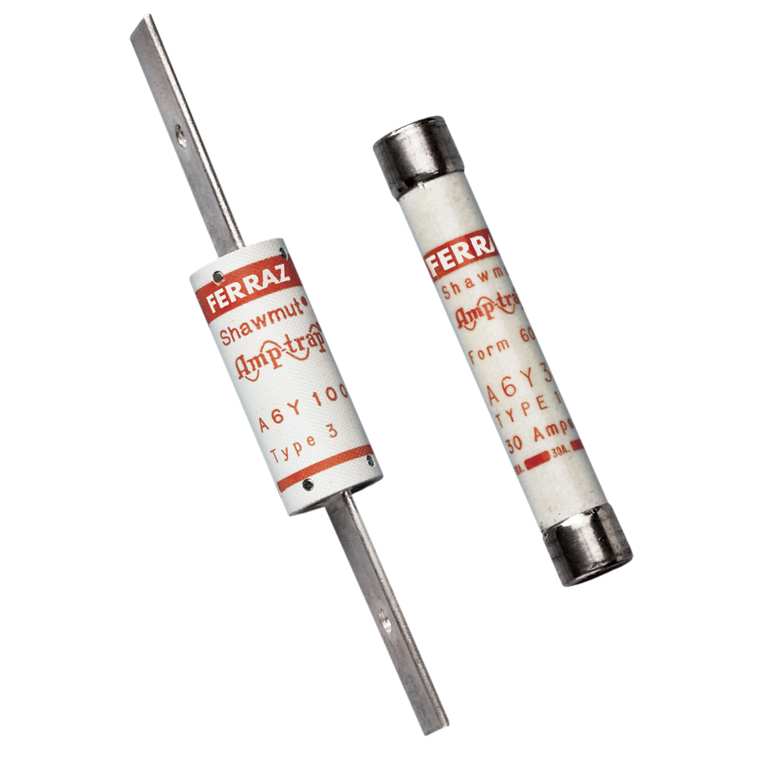

A6Y15-1 Type 1 Special Purpose Standard DC Fuse, 15 A, 600 VAC, 200 kA, Class K/Form 600, Cylindrical Body
| Branch Name | Available |
|---|
MERSEN form 600 fuses are the original current limiting fuses, pre-dating all the standards. Their 500 VDC rating (through 600 A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Ferraz Shawmut AMP-TRAP® DC Fuse, Type 1 Special Purpose Standard, Series: A6Y, 15 A, 600 VAC, 200 kA Interrupt, Class: K/Form 600, Ferrule Terminal, Clip Mounting, Cylindrical Body, GMG, 13/16 in Dia x 5 in L Body
| Body Size | : | 13/16 in Dia x 5 in L |
| Material | : | GMG |
| Mounting Type | : | Clip |
| Series | : | A6Y |
| Terminal Type | : | Ferrule |
| Type | : | Type 1 Special Purpose Standard |
| Amperage Rating | : | 15 A |
| Voltage Rating | : | 600 VAC |
| Interrupt Rating | : | 200 kA |
| Class | : | K/Form 600 |
| Body Type | : | Cylindrical |
