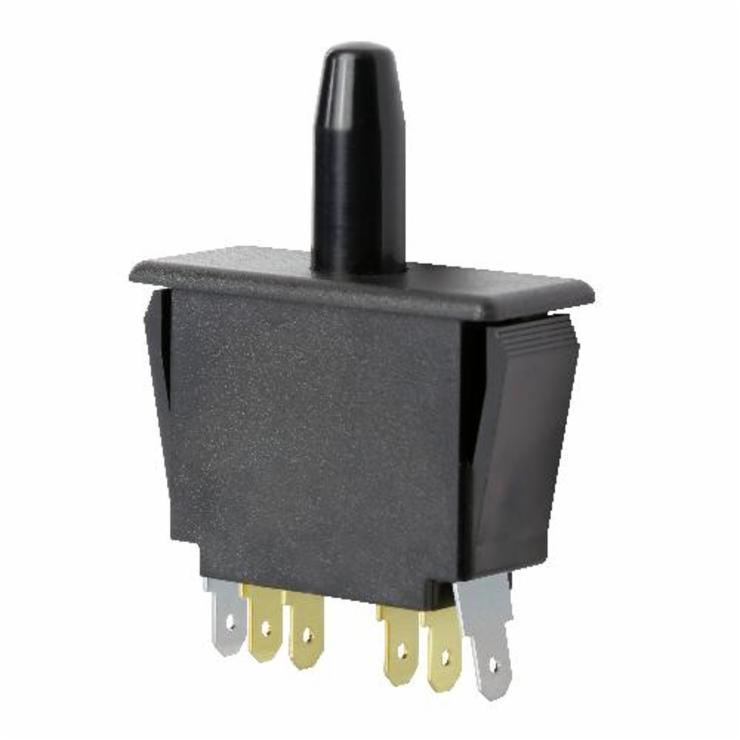

Honeywell MICRO SWITCH 2DM1 DM Series Door Interlock Limit Switch, 277 VAC, 10 A, Bullet Nose Plunger Actuator, DPDT Contact
| Branch Name | Available |
|---|
MICRO SWITCH DM/DP basic switches are known for their compact, lightweight design and accurate repeatability. The DM/DP Series are special application precision switch that have momentary, push-pull, and pull-to-cheat configurations. The quick- connect terminals and snap-in, panel-mount housings provide easy installation.
Honeywell MICRO SWITCH Door Interlock Limit Switch, Series: DM Series, 277 VAC, 10 A, DPDT, Momentary, Bullet Nose Plunger, Quick-Connect, Panel Mount, 1.12 in H x 0.55 in W, -37 to 87 deg C Operating, Polyester Coated, Black Oxide
| Action | : | Momentary |
| Color | : | Black Oxide |
| Connection Type | : | Quick-Connect |
| Material | : | Polyester Coated |
| Mounting Type | : | Panel |
| Operating Temperature | : | -37 to 87 deg C |
| Series | : | DM Series |
| Size | : | 1.12 in H x 0.55 in W |
| Voltage Rating | : | 277 VAC |
| Amperage Rating | : | 10 A |
| Actuator | : | Bullet Nose Plunger |
| Contact Configuration | : | DPDT |
