Weidmiller BasicLine consists of unmanaged plug and play switches in a robust IP30 protected aluminum housing the equipment can be delivered with fast Ethernet and gigabit Ethernet ports and offers an economical solution for industrial Ethernet networks. one variety is fitted with fast Ethernet and power-over Ethernet ports. all the equipment has been developed for use in harsh industrial environments and has international approvals such as CE, cULus, class I Div. 2 / ATEX and DNV / GL and is therefore able to be used in many international applications.

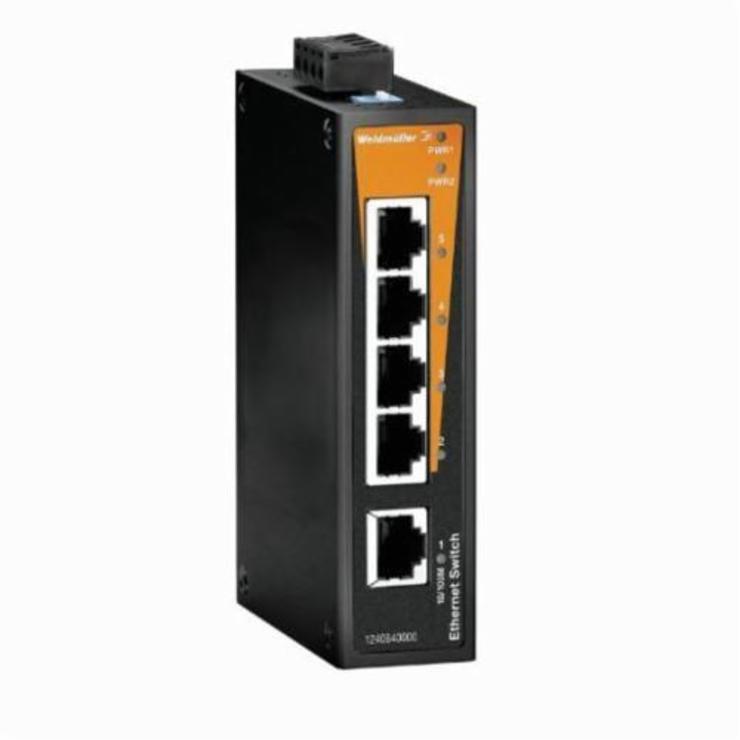

Weidmuller Network Switch, Unmanaged, RJ45 Connector Port, Fast Ethernet Protocol, 4-Pin Terminal Block Connector, 0.1 A at 24 V Supply, IP30, DIN Rail Mount, 2.756 in Length, 1.181 in Width, 4.528 in Height, -10 to 60 deg C, Environmental Conditions: -40 to 85 deg C Storage Temperature

• Plug and play switches in a rugged aluminum housing
• Compact design
• Switches for an economical entry solution
• Fast Ethernet versions with 5 and 8 ports
• Models with copper or fiber optic interface
• Full gigabit plug and play switch with 5 ports
• Power-over Ethernet switch with 6 fast Ethernet ports, 4 of them PoE ports
• 5 to 95% humidity
• 1x for enabling/disabling the broadcast storm protection dip switch
• PWR1, PWR2, 10/100M LED indicator
• IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control Ethernet standard
• 12/24/48 VDC , 9.6 to 60 VDC , 18 to 30 VAC , 47 to 63 Hz, 2 redundant inputs supply voltage
• 3,040,784 dBm MTBF
