A055D1DSR0-12R Back Up Medium Voltage Motor Protection Fuse, 12 A, 5500 VAC, 65/100 kA, Class R, Ferrule Body
| Branch Name | Available |
|---|
AMP-TRAP® R-rated DIN style fuses are current limiting, high interrupting rating fuses, intended for the short circuit protection of medium voltage motors and motor controllers. This product range offers north American R-rated performance in the IEC 282-1 DIN mounting configuration of 442 mm. R-rated fuses are applied as back up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. AMP-TRAP® R-Rated, DIN type fuses are offered in voltage ratings of 3.3 kV, 5.3 kV and 7.2 kV in ratings from 2R to 19R. All fuses within this product group are UL component recognized.

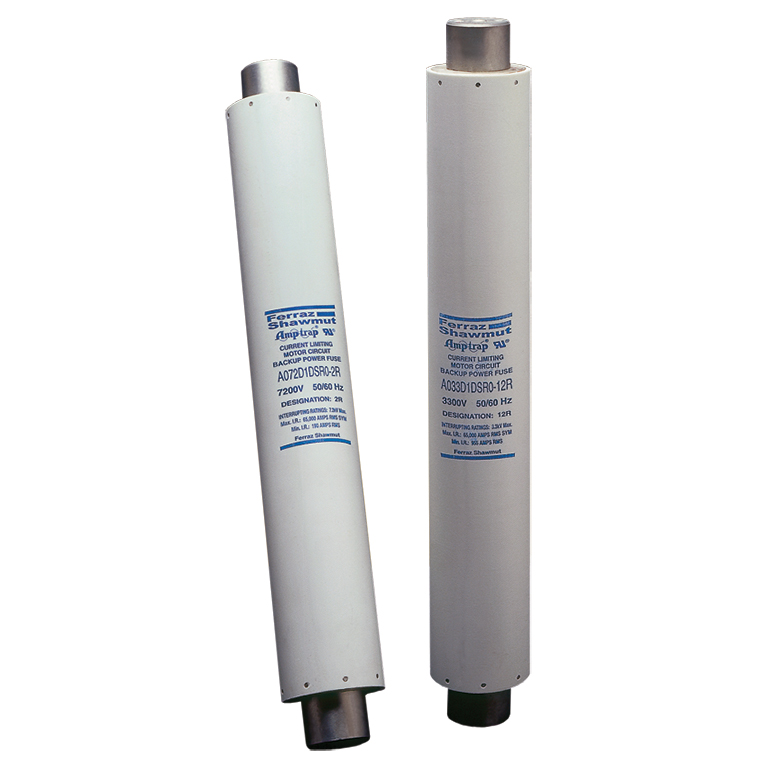

Ferraz Shawmut AMP-TRAP® Motor Protection Fuse, Back Up Medium Voltage, Series: A055D1, Indicating, 12 A, 5500 VAC, 65/100 kA Interrupt, Class: R, Clip Terminal, Clip Mount, Ferrule Body, GMG, 2.88 in Dia x 20 in L Body Size
| Body Size | : | 2.88 in Dia x 20 in L |
| Indicating/Non-Indicating | : | Indicating |
| Material | : | GMG |
| Mounting Type | : | Clip |
| Series | : | A055D1 |
| Terminal Type | : | Clip |
| Type | : | Back Up Medium Voltage |
| Amperage Rating | : | 12 A |
| Voltage Rating | : | 5500 VAC |
| Interrupt Rating | : | 65/100 kA |
| Class | : | R |
| Body Type | : | Ferrule |
