The D65VAKP over/under voltage relays provide protection to equipment where either an over or undercurrent condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop out when the operating voltage drops to a level below the preset value. The pickup voltage setting is user adjustable from 75 to 125% of the nominal voltage rating. As standard, the D65VAKP has an adjustable dropout setting of 75 to 95%. The relay energizes when the monitored voltage is above the pickup setting. The relay de-energizes when the monitored voltage is below the dropout setting for a period longer than the dropout time delay, which is adjustable from 0.1 to 10 s. A fixed time delay of 500 ms is available with the D65VMP Series.

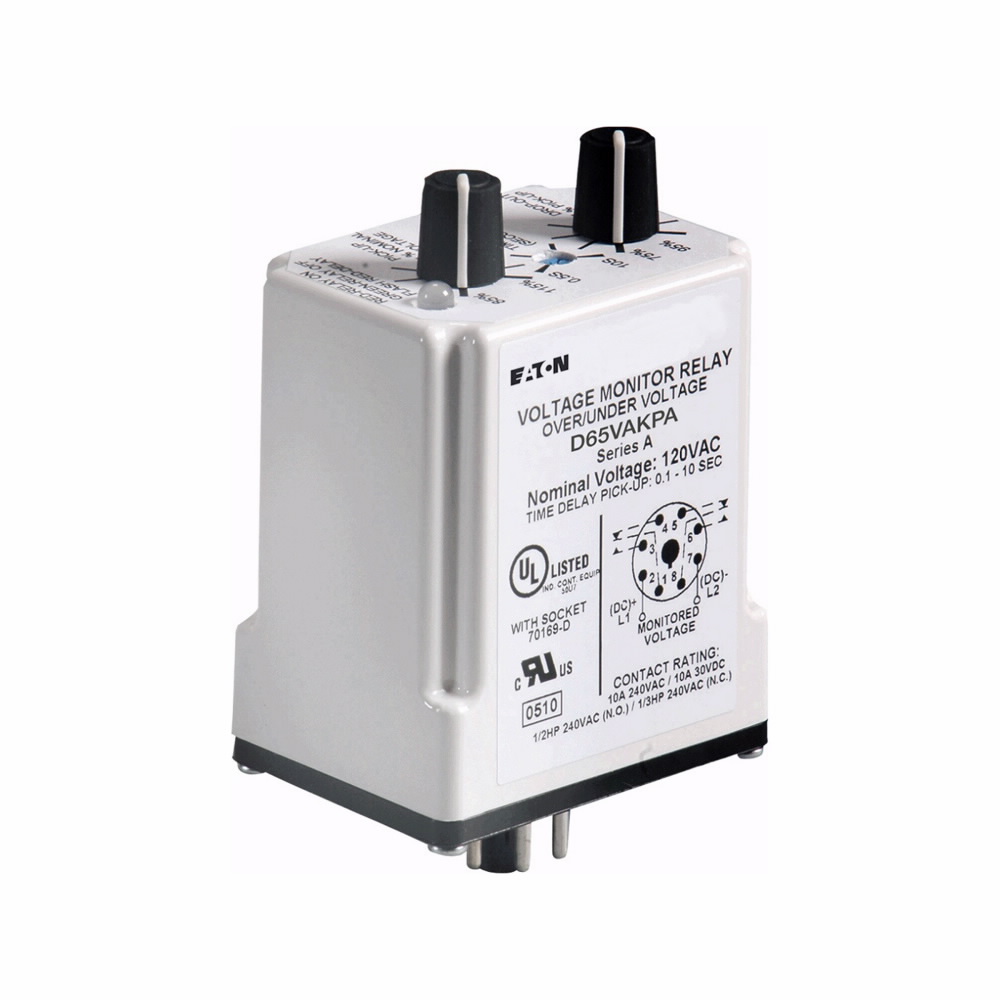

EATON Over/Under Voltage Relay, 1-Phase Adjustable Pickup/Dropout Time Delay, Series: D65VAKP, 120 VAC, 50/60 Hz, DPDT, 8 Pins, Plug-In/Socket Mount, 0.1 to 10 s Trip Delay, 4-1/4 in L x 2-1/2 in W x 2 in H

• Monitors AC 1-ph and DC voltages
• Wide range of user adjustable pickup and dropout settings
• Adjustable time delay on dropout of 0.1 to 10 s
• LED indicates output relay status
• Compact plug-in case using industry standard 8-pin octal socket
