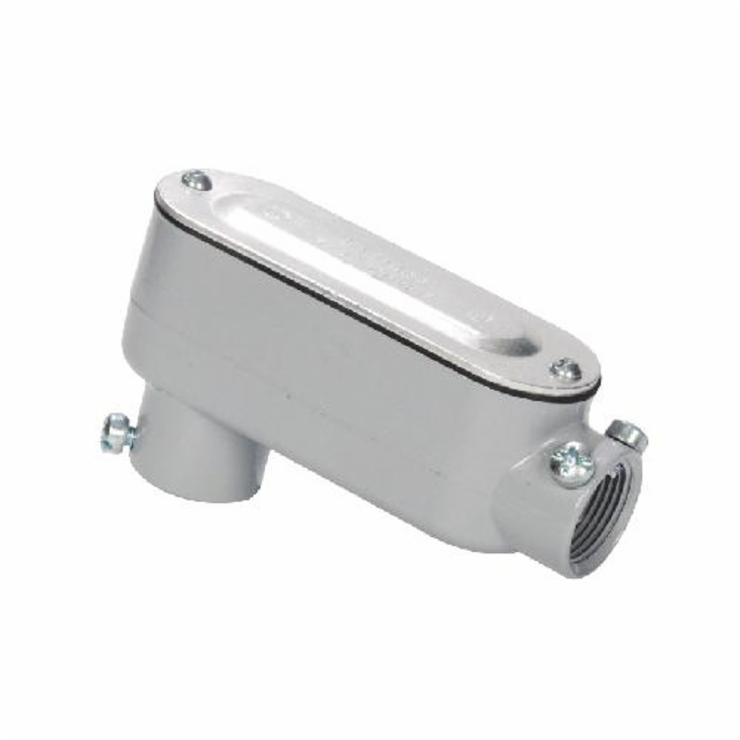

Sepco LB1CA

SEPCO LB1CA Type LB Combination Conduit Body, 1/2 in Hub, 4.35 cu-in, Die Cast Copper Free Aluminum, Enamel Coated

  • MPN: LB1CA
  • UPC: 785994641018
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Sepco LB1CA

SEPCO Conduit Body, Type LB Combination, 1/2 in Hub, 2 Hubs, 4.35 cu-in, NPT, Die Cast Copper Free Aluminium, Enamel Coated, 4.31 in L x 1.31 in W x 2.44 in H

Connection Type      :      NPT
Dimensions      :      4.31 in L x 1.31 in W x 2.44 in H
Number of Hubs      :      2
Type      :      Type LB Combination
Hub Size      :      1/2 in
Capacity      :      4.35 cu-in
Material      :      Die Cast Copper Free Aluminum
Finish      :      Enamel Coated
  • Assembled with slotted/robertson combination screws
  • Assembled with neoprene gasket and stamped cover
  • Tapered threaded hubs (NPT)
  • Die cast from high-strength, corrosion and weather resistant, copper-free aluminum alloy
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete
  • 90 deg hub location
  • Left back access opening
