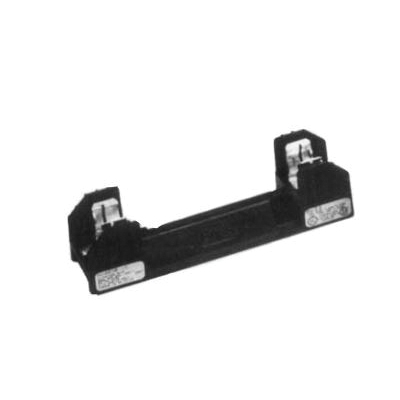

R60200-1CR R600 Fuse Block, 600 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 1 Pole
| Branch Name | Available |
|---|
Edison Fuse Block, Series: R600, 600 VAC, 200 A, 1 Poles, Class: R, Fuse Holder Code: S, Box Lug, 6 AWG to 250 kcmil Wire, Chassis Mount, 9.63 in Fuse Length, 1.84 in Fuse Dia, For Use With: Low-Peak™ LPS-RK, Fusetron™ FRS-R, Limitron™ KTS-R and DLS-R Fuse, Thermoplastic, Black, 9.63 in L x 3 in W x 3.15 in H
| Color | : | Black |
| Connection Type | : | Box Lug |
| Dimensions | : | 9.63 in L x 3 in W x 3.15 in H |
| Fuse Diameter | : | 1.84 in |
| Fuse Holder Code | : | S |
| Fuse Length | : | 9.63 in |
| Material | : | Thermoplastic |
| Mounting Type | : | Chassis |
| Series | : | R600 |
| Suitable For Use With | : | Low-Peak™ LPS-RK, Fusetron™ FRS-R, Limitron™ KTS-R and DLS-R Fuse |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 200 A |
| Class | : | R |
| Wire Size | : | 6 AWG to 250 kcmil |
| Number of Poles | : | 1 |
