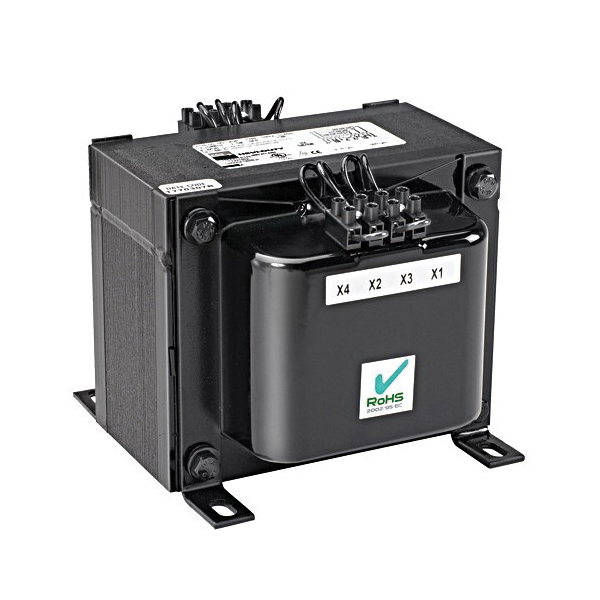

CE1000MH ICE International Encapsulated Control Transformer, 208/240/415/480/600 VAC Primary, 120/240 VAC Secondary, 1 kVA, 50/60 Hz, 1 Phase
| Branch Name | Available |
|---|
Electromagnetic control components demand inrush currents up to 10X the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The international Series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
SolaHD Control Transformer, Encapsulated, Series: ICE International, 208/240/415/480/600 VAC Primary, 120/240 VAC Secondary, 1 kVA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 0.5, Panel Mounting, 266 deg F Insulation, IP20 Enclosure, 80 deg C, 7.75 in L x 6.38 in W x 5.63 in H Dimensions
| Dimensions | : | 7.75 in L x 6.38 in W x 5.63 in H |
| Enclosure Type | : | IP20 |
| Insulation | : | 266 deg F |
| Mounting Type | : | Panel |
| Power Factor | : | 0.5 |
| Series | : | ICE International |
| Temperature Rating | : | 80 deg C |
| Type | : | Encapsulated |
| Primary Voltage | : | 208/240/415/480/600 VAC |
| Secondary Voltage | : | 120/240 VAC |
| Power Rating | : | 1 kVA |
| Frequency Rating | : | 50/60 Hz |
| Phase | : | 1 ph |
