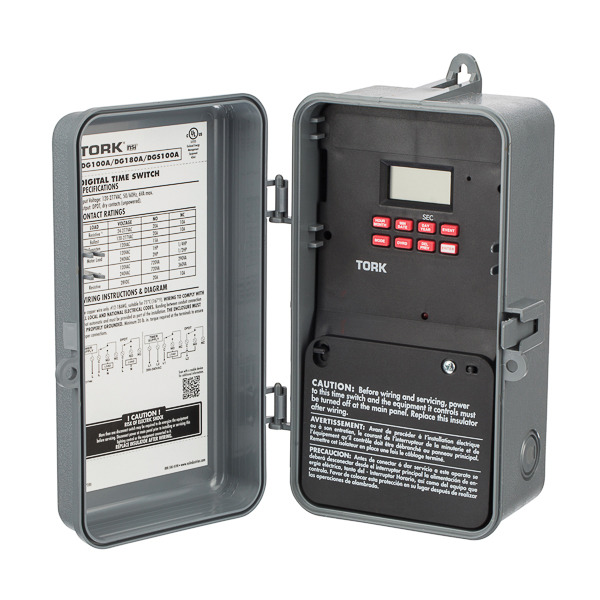

NSI Tork® Time Switch, On/Off, Series: DGS, Operation Mode: 24 hr/7 Days, 120 to 277 VAC, 20 A, 2 hp, 2 Pole, 1 Channels, DPDT Contact Form, 7 days Time Setting, 56 On/Off Ratio, Digital Display, NEMA 3R Enclosure, -31 to 131 deg F, Threaded Mounting, 5 in L x 4-1/2 in W x 9-1/8 in H Dimensions

• Scheduling 56 On/Off set points provide individual programs for each day of the week, minimum setting is 1 min
• Duty cycle and signalling two different On/Off patterns or signal durations may be programmed, the durations can be up to 23 hr, 59 min and 59 sec in length
• Skip function (24 hr units only) each channel can be set for active/skip operations that alternate from 1 to 31 days, this becomes an effective way to cycle loads on varying days within the month, using the two-circuit DG280A, two loads can be set to operate on alternate days in a simple manner
• Daylight saving automatic adjustment (can be omitted)
• Leap year automatic compensation
• Manual override until the next regularly scheduled On or Off, automatic operation then resumes
• AM/PM or 24 hr clock format
• Power outage backup permanent schedule retention, super capacitor provides 7 days of real time backup

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_e22f20ad1ce51e64c2b117c9c49cc9711fa25e2006a55082994af30ddf524f8c.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/NSI_Tork_DGS100A_Instruction.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_edafc309b95b1cf70a71979e7aacf1549ca93f2bd1056af4aef2d7383a6abcf6.pdf
