Sequencing of fan control with up to three safety operations.

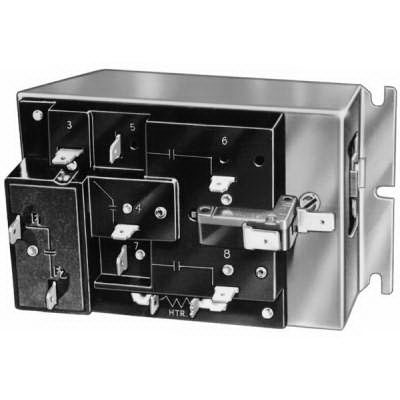

Honeywell Electric Furnace Sequencer, Series: R8330, 60 Hz, 24 VAC Coil, 1/3 hp Contact, -20 to 115 deg F, 3-1/16 in H x 4-13/16 in W x 2-11/32 in D

• Isolated fan switch has positive interlock to assure fan is on when the element is on and fan is off when the element is off
• Replaces many of the OEM and competitive models
• Auxiliary switch controls a second R8330 in application with more than three elements
• Cycles on within 2 min, off within 4 min
• Ten-second minimum delay between stages
• Timings meets EEI-NEMA and ARI 280 standards
• 1/3 hp 7.2 A at 120 VAC, 3/4 hp 4.9 A at 240 VAC, 29.4 A at 277 VAC AFL, 1/3 hp 43.2 A at 120 VAC, 3/4 hp 41.4 A at 240 VAC, 29.4 A at 277 VAC ALR

• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Honeywell_R8330D1039U_Specification_Sheet.pdf
