HMCP150T4CA02 C Series Type HMCP Motor Circuit Protector, 600 VAC/250 VDC, 150 A, 3 Poles, Magnetic Trip
| Branch Name | Available |
|---|
Designated as Eaton types GMCP and HMCP, the instantaneous only motor circuit protector (MCP). An innovative design of internal components allows higher MCP starter combination interrupting ratings. The MCP is marked to permit proper electrical application within the assigned equipment ratings.

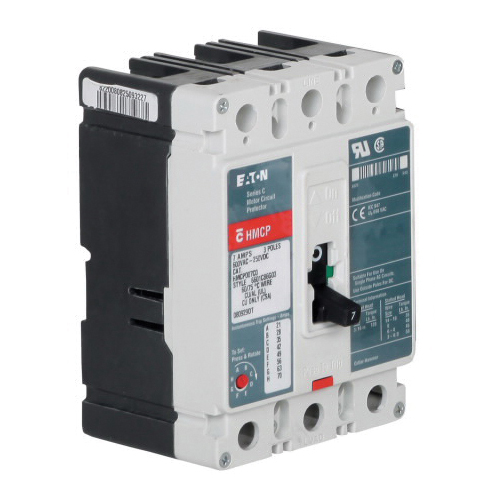

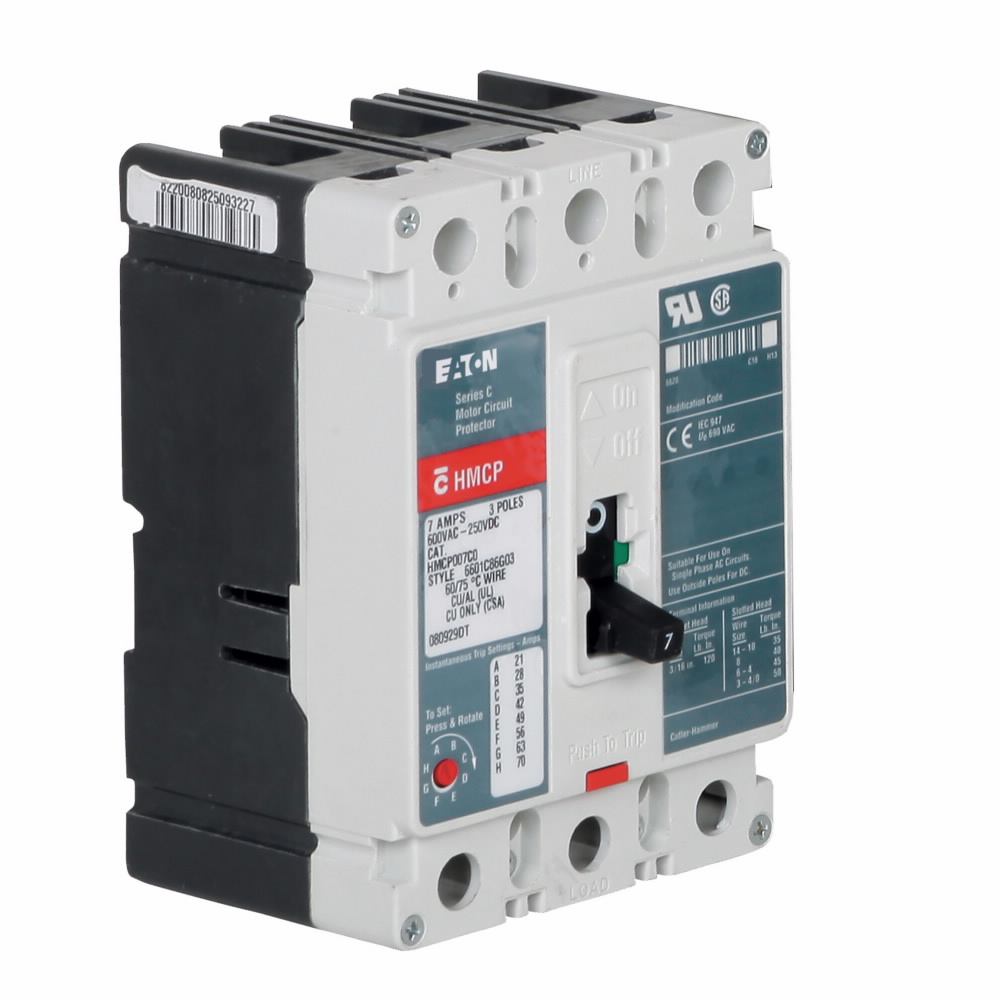

EATON Motor Circuit Protector, Type HMCP, Series: C Series, 600 VAC, 250 VDC, 150 A, 50/60 Hz Frequency, F Frame, Magnetic Trip, 450 to 1500 A Trip, 3 Pole, Line/Load Lug Connection, 18 AWG Wire, NEMA 4 Enclosure, Panel Mounting, 8 x 5 x 5 in Dimensions
| Connection Type | : | Line/Load Lug |
| Dimensions | : | 8 x 5 x 5 in |
| Enclosure Type | : | NEMA 4 |
| Frame | : | F |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Series | : | C Series |
| Trip Range | : | 450 to 1500 A |
| Type | : | Type HMCP |
| Wire Size | : | 18 AWG |
| Voltage Rating | : | 600 VAC/250 VDC |
| Amperage Rating | : | 150 A |
| Number of Poles | : | 3 |
| Trip Type | : | Magnetic |
