Electrozad

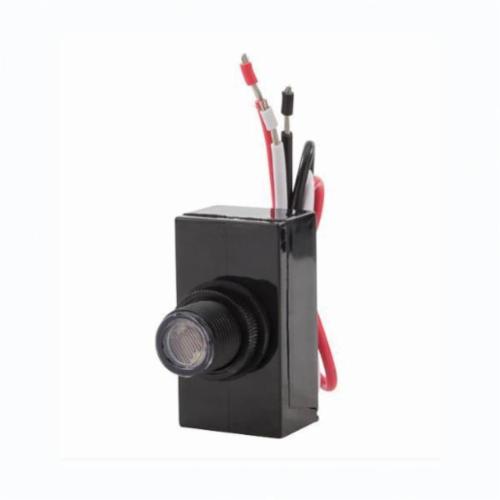

NSI Photocontrol, Button, Series: 3000, 120 VAC, 50/60 Hz, 2000 W Tungsten, 1200 VA Ballast, 1NC/SPST, 2 min, 16 AWG Wire, Cadmium Sulfide Cell Sensor, 1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio, Environmental Conditions: -40 to 140 deg F Operating Temperature, Flush Mount, Lexan, 2 in H x 1 in W x 1-1/2 in D

• Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
• Photocell responds to the light spectrum near to that of a human eye
• Delay of up to two minutes to prevent false switching due to light from passing vehicles, lightning and more
• Control housing is weather resistant molded Lexan® with ultrasonically welded seams
• Flush mounting through 11/16 in hole in post lantern or lighting fixture, 3/8 in NPT, stem 3/4 in long
• Works with screw base CFL
• On and Off time delay
• Cadmium sulphide, conformal coated 1/2 in diameter cell
• Three color coded, minimum 9 in wire leads, 16 AWG, rated for 105 deg C lead wires
• Averages under 1 W power consumption
• On fail mode

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_9a677abbe0f087ac343a04b05c904dae13839856d98aaa0223720ad23f286c73.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_ea4f0ee603c92e3b9580099838aa52c111af75c8ae0559153306947d803db230.pdf
