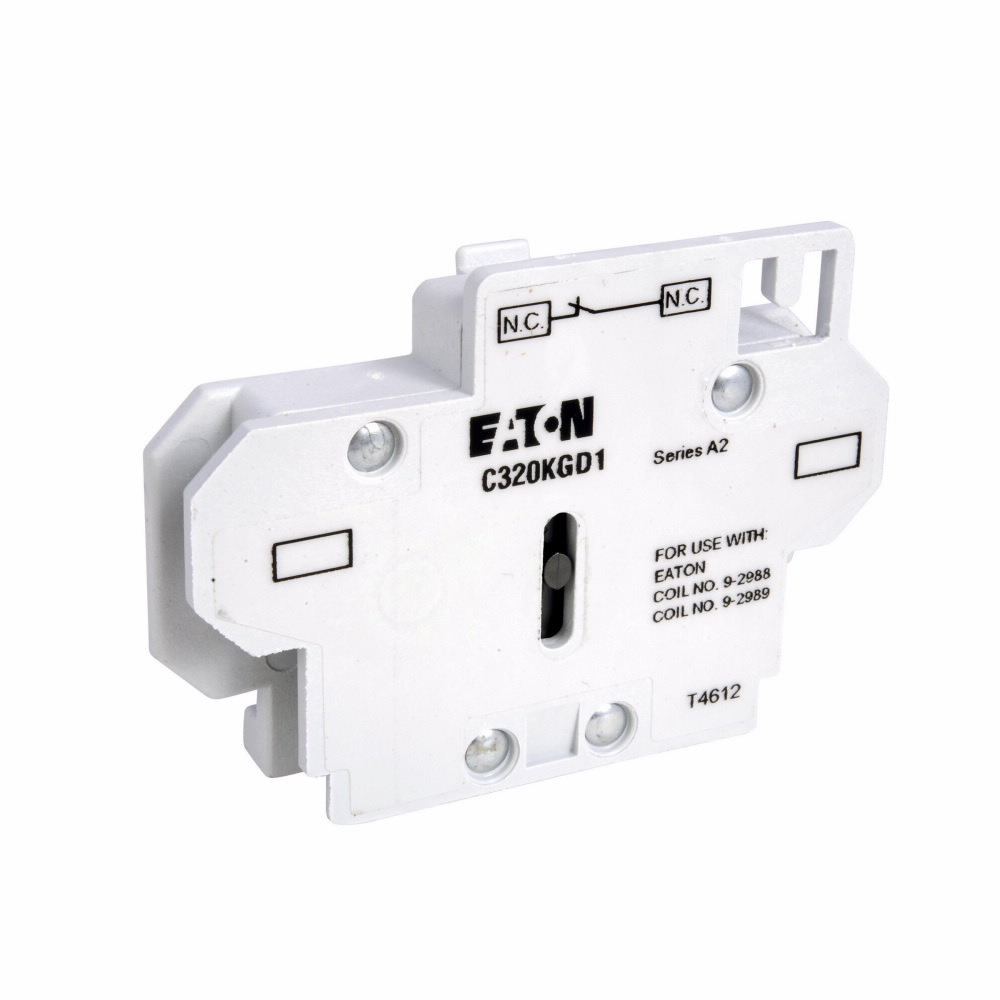

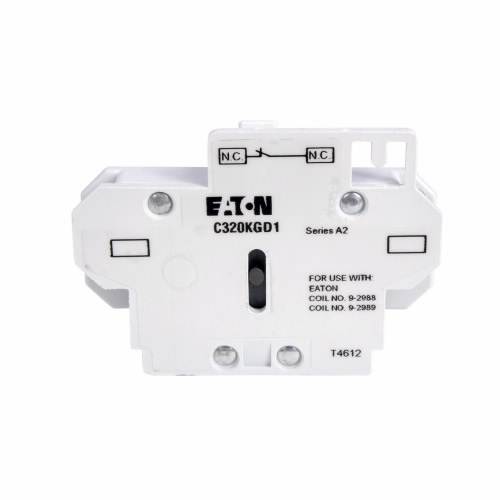

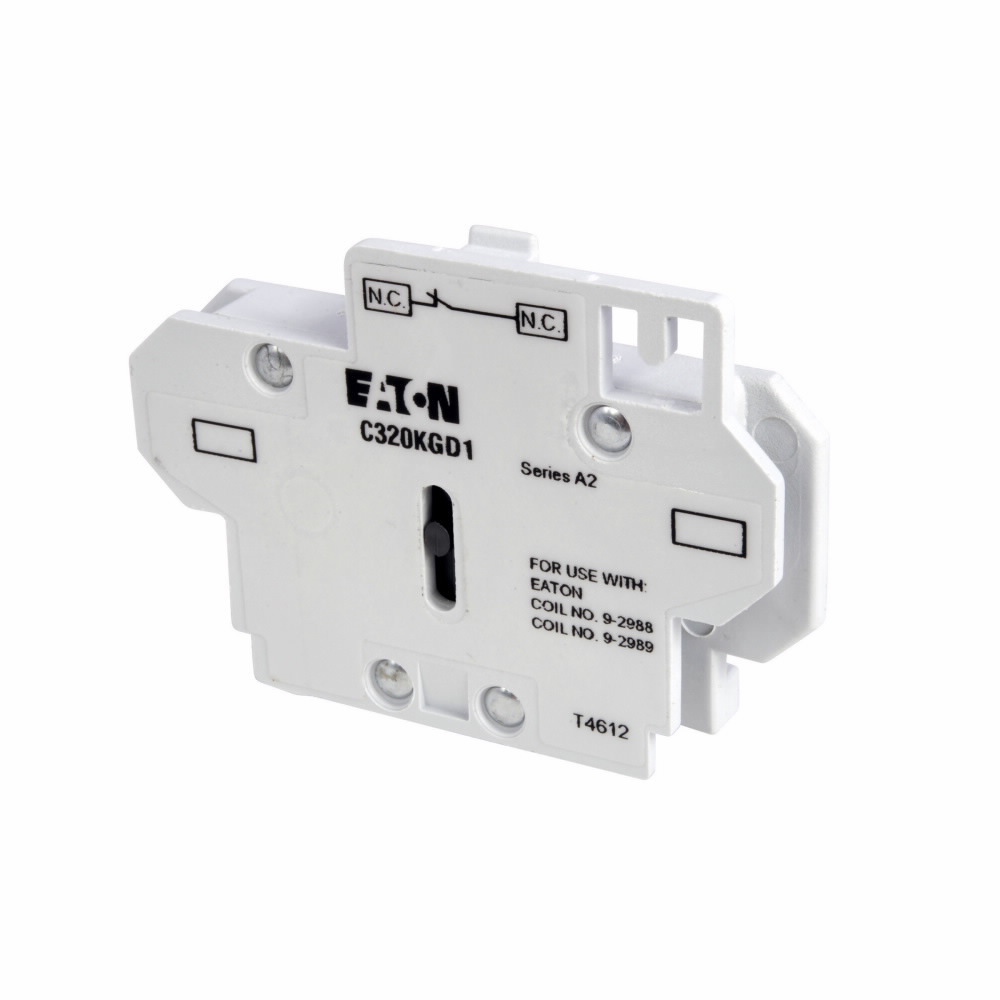

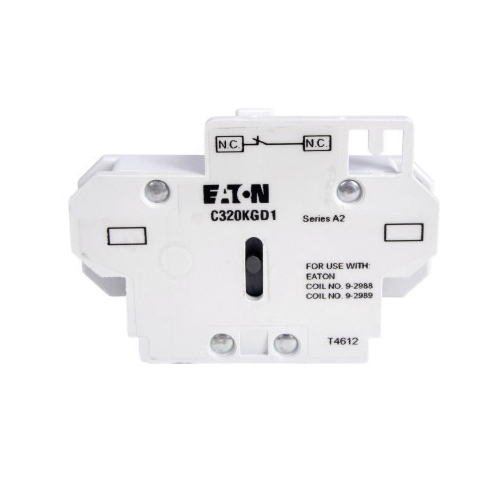

C320KGD1 Freedom Interlock Auxiliary Contact, 6.4 A, Silver Cadmium Alloy
| Branch Name | Available |
|---|
EATON Auxiliary Contact, Interlock, Series: Freedom, 6.4 A, 76.8 W Wattage, NEMA 0/IEC SZ A to F Size, Side Mounting, Silver Cadmium Alloy, For Use With: NEMA 00 to 0 CN35 A, B, D, D-15 Relay, Contactor and Starter, 2.6 in L x 1.1 in W x 4 in H Dimensions
| Dimensions | : | 2.6 in L x 1.1 in W x 4 in H |
| Mounting Type | : | Side |
| Series | : | Freedom |
| Size | : | NEMA 0/IEC SZ A to F |
| Suitable For Use With | : | NEMA 00 to 0 CN35 A, B, D, D-15 Relay, Contactor and Starter |
| Type | : | Interlock |
| Wattage | : | 76.8 W |
| Amperage Rating | : | 6.4 A |
| Material | : | Silver Cadmium Alloy |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f.pdf
Line Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_174b265dbc3e859ab567f5224a6ebf870183a60c2b58491718dd87ea44f390fd.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_58e9110a5c6201f7bc5bdcbf55939f1c424b174721debe19a5904e4039e06d4a.pdf
Technical Bulletin
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_805633b667df4bc62d30a8e05cab52a033ce9d8bb9ff1ccdeda5c65928722d08.pdf
