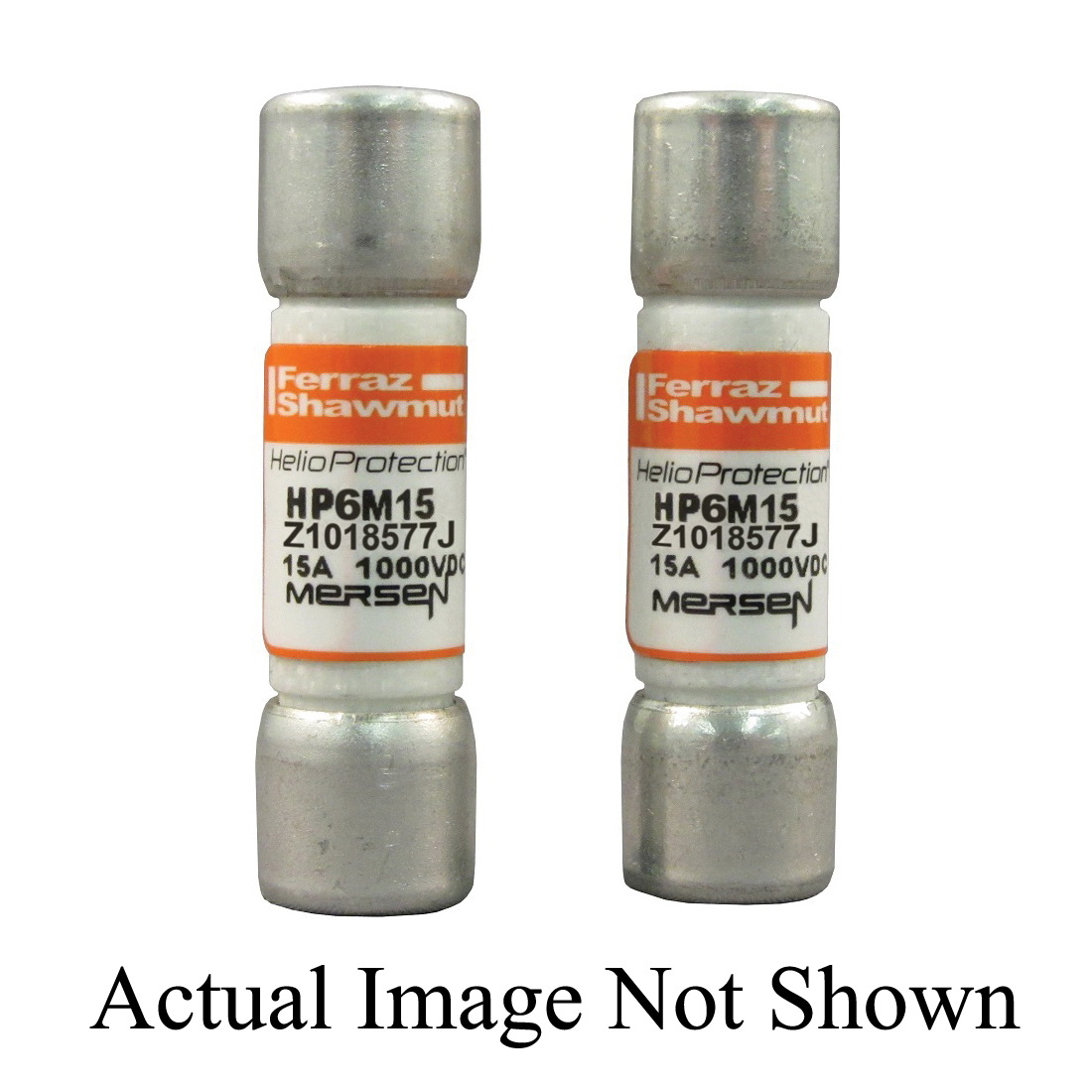

HP6M10 Type gPV Fast Acting Photovoltaic Fuse, 10 A, 600 VDC, 10 kA, Class Midget, Cylindrical Body
| Branch Name | Available |
|---|
MERSEN's HP6M photovoltaic (PV) fuse series is designed specifically for the protection of PV string wiring for 600 VDC residential and commercial rooftop photovoltaic systems. Its enhanced construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 600 VDC rated HP6M, designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your rooftop PV system from unexpected ground faults and string faults using MERSEN's HelioProtection® fuse line.
Ferraz Shawmut HelioProtection® Photovoltaic Fuse, Type gPV Fast Acting, Series: HP6M, Non-Indicating, Non-Rejection, 10 A, 600 VDC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, GMG, 0.41 in Dia x 1.5 in L Body Size
| Body Size | : | 0.41 in Dia x 1.5 in L |
| Element | : | Single |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | GMG |
| Mounting Type | : | Clip |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | HP6M |
| Terminal Type | : | Ferrule |
| Type | : | Type gPV Fast Acting |
| Amperage Rating | : | 10 A |
| Voltage Rating | : | 600 VDC |
| Interrupt Rating | : | 10 kA |
| Class | : | Midget |
| Body Type | : | Cylindrical |
