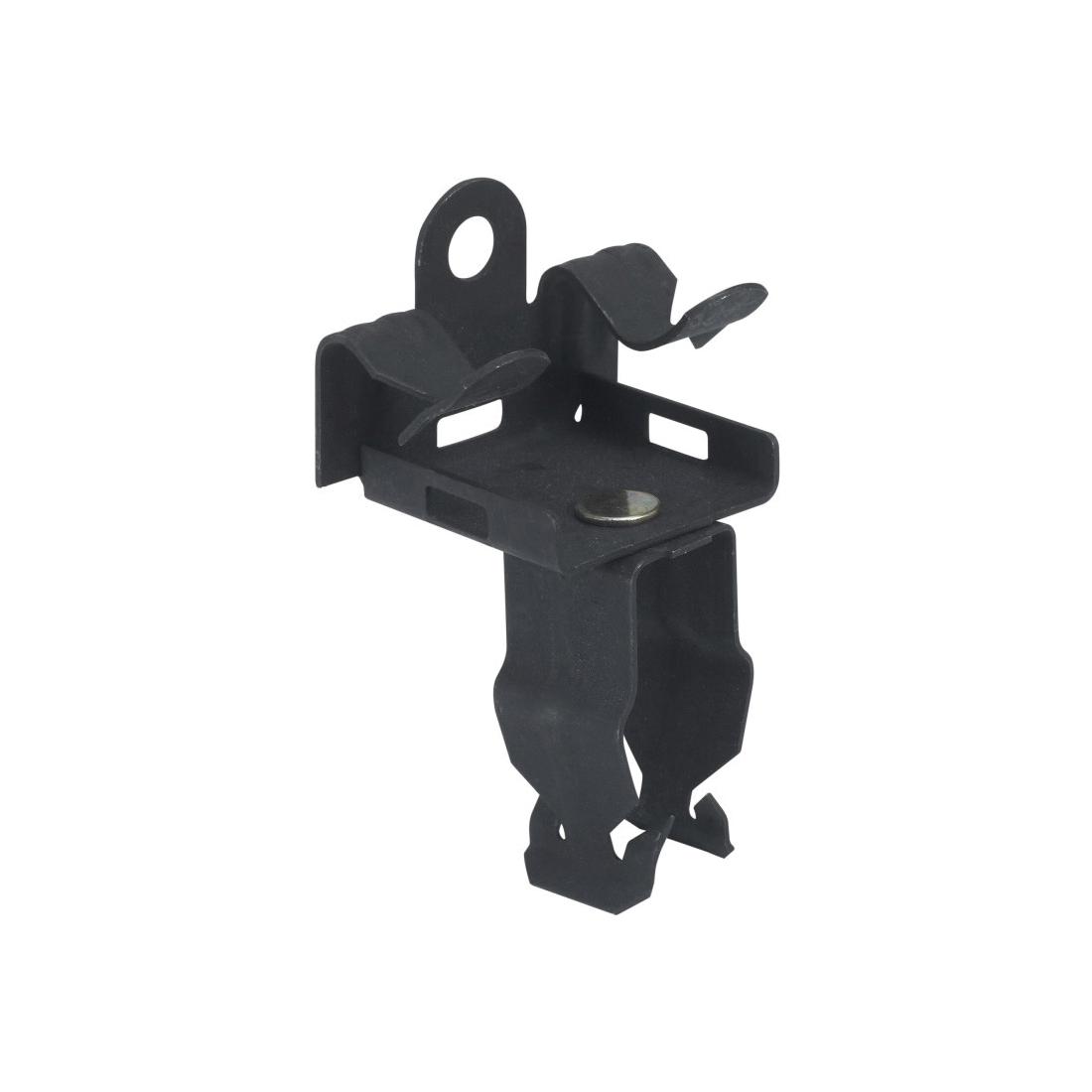

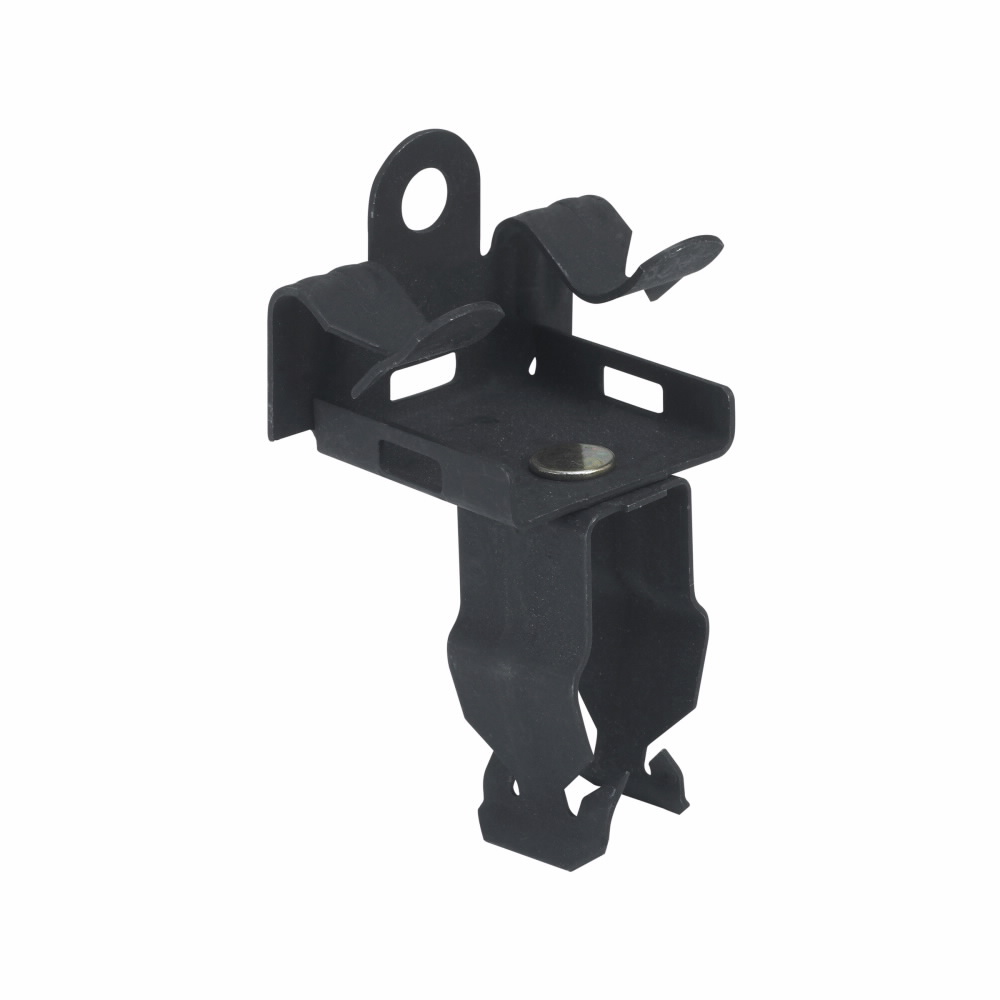

BP-12-U-2-4 Push Style Conduit to Beam Fastener, 3/4 in, 1/2 in in Conduit, 1/8 to 1/4 in THK, 25 lb Load, High Carbon Steel, Zinc Phosphate
| Branch Name | Available |
|---|
B-Line is a leading manufacturer and fabricator of metal products used in the support of pipe hangers and support equipment for industrial, commercial, utility and HVACR applications. B-Line pipe hangers and supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.

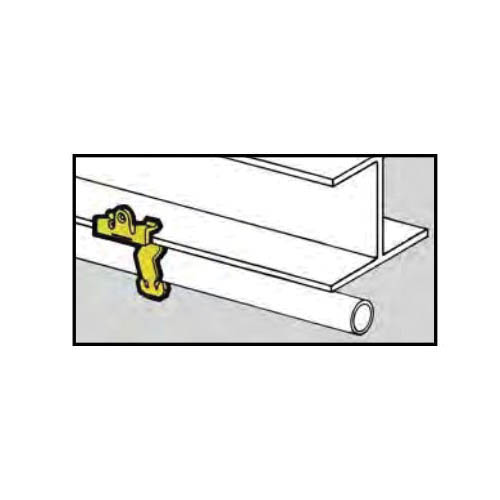

B-Line Conduit to Beam Fastener, Push Style, 3/4 in, 1/2 in Conduit, 1/8 to 1/4 in Flange Thickness, Bottom Mounting, 25 lb Load, For Use With: EMT/IMC/Rigid Conduit, Specifications: 360 deg Rotation Pivot, High Carbon Steel, Zinc Phosphate
| Mounting Type | : | Bottom |
| Specifications | : | 360 deg Rotation Pivot |
| Suitable For Use With | : | EMT/IMC/Rigid Conduit |
| Type | : | Push Style |
| Conduit Size | : | 3/4 in, 1/2 in |
| Flange Thickness | : | 1/8 to 1/4 in |
| Load Capacity | : | 25 lb |
| Material | : | High Carbon Steel |
| Finish | : | Zinc Phosphate |
