DXN series plugs and receptacles are convenient, lightweight devices that are safe for use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern. The DXN's compact size and durable construction makes them easy to handle and well suited for in-line connections of electrical equipment. The DXN's dead front construction assures electrical safety by preventing user access to live parts. IP66+IP67 ratings are achieved as soon as the plug and receptacle are mated, making them the perfect choice for wet or dusty environments.

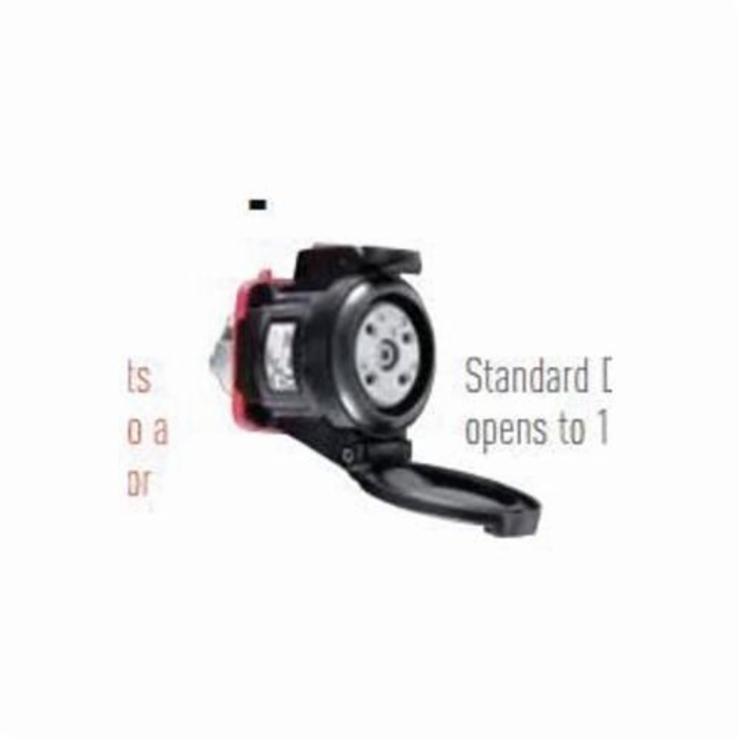

MELTRIC DECONTACTOR™ Female Receptacle, Series: 22-14167 DXN20, 120/127/208/220 VAC, 20 A, 1/4 hp, 60 Hz, 4 Pole, 5 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.24 in Dia x 3.05 in L

• Easy to handle due to compact, lightweight design
• CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
• Hazardous location termination areas includes enhanced creepage and clearance distances and specially designed terminals to ensure perfect and permanent clamping
• Self-extinguishing, non-static, material provides outstanding resistance to mechanical abuse and chemicals
• When closed, the lid maintains IP66+IP67 protection for the receptacle after removal of the plug
• 1/4 hp at 120 VAC 1-phase, 1 hp at 240 VAC, 3 hp at 480 VAC 3-phase horsepower rating
