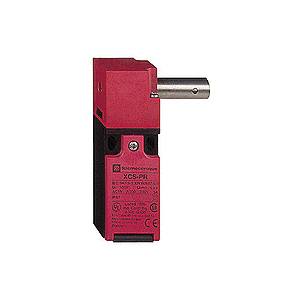

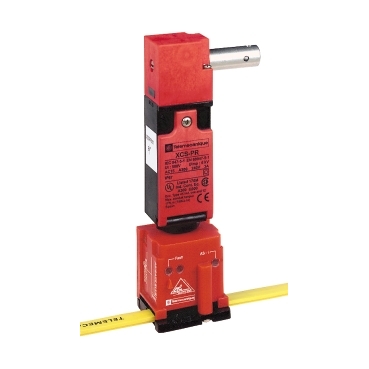

safety switch XCSPR - spindle 30 mm - 2NC -Pg11

Schneider Electric Preventa™ Safety Interlock Switch, Guard, 10 A, 2 Pole, PG11 Hub, Threaded Mounting, IP67 Enclosure, Plastic, 96 mm H x 30 mm W x 60 mm D Dimensions

• Turret head rotary axis
• Double insulated
• Spindle 30 mm operator
• Terminal electrical connection
• 1NO-1NC contact configuration
• Slow-break contact operation
• 1 x 0.5 to 2 x 1.5 sq-mm with or without cable end clamping connection capacity
• (1) entry tapped Pg 11 cable entry
• 7 to 10 mm OD cable
• With NC contacts positive opening
• 5 deg tripping angle
• 1000000 cycles mechanical durability
• 0.1 N-m minimum torque for tripping
• 0.25 N-m positive opening minimum torque
• 6 kV conforming to EN/IEC 60947-5-1 rated impulse withstand voltage
• Less than or equal to 30 MOhm conforming to EN/IEC 60947-5-4 resistance across terminals
• 10 A cartridge fuse type gG (gl) short circuit protection
• Polyamide PA66 fiber glass impregnated enclosure
• Stainless steel lever
• -25 to 70 deg C ambient air temperature for operation

• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_cee9147c3804997faf3e2ec36785b12e179b25c77441ad15c6852b48d129d5ae.pdf
