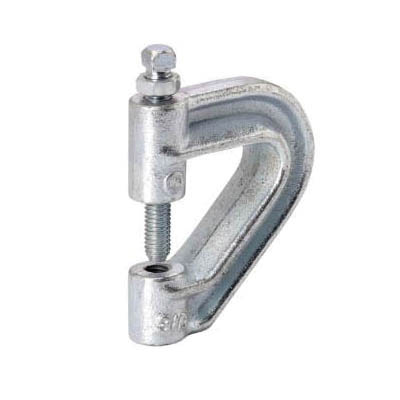

B3037ZZN Mechanical Beam Z-Purlin C-Clamp, 3/8-16 Rod, 400 lb Load, Malleable Iron
| Branch Name | Available |
|---|
B-Line C-Clamp, Mechanical Beam Z-Purlin, Series: B3037, 3/8-16 Rod Diameter, 400 lb Load, For Use With: Attaching Hanger Rod to the Bottom Flange of a Z-Purlin, Specifications: 31/32 in Throat Opening, Malleable Iron, Zinc Plated, 3-13/32 in L x 3 in W Dimensions
| Dimensions | : | 3-13/32 in L x 3 in W |
| Finish | : | Zinc Plated |
| Series | : | B3037 |
| Specifications | : | 31/32 in Throat Opening |

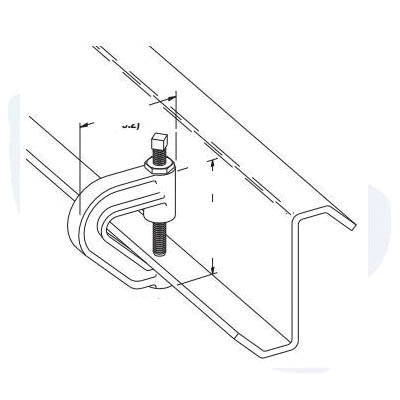

| Suitable For Use With | : | Attaching Hanger Rod to the Bottom Flange of a Z-Purlin |
| Type | : | Mechanical Beam Z-Purlin |
| Rod Diameter | : | 3/8-16 |
| Load Capacity | : | 400 lb |
| Material | : | Malleable Iron |
