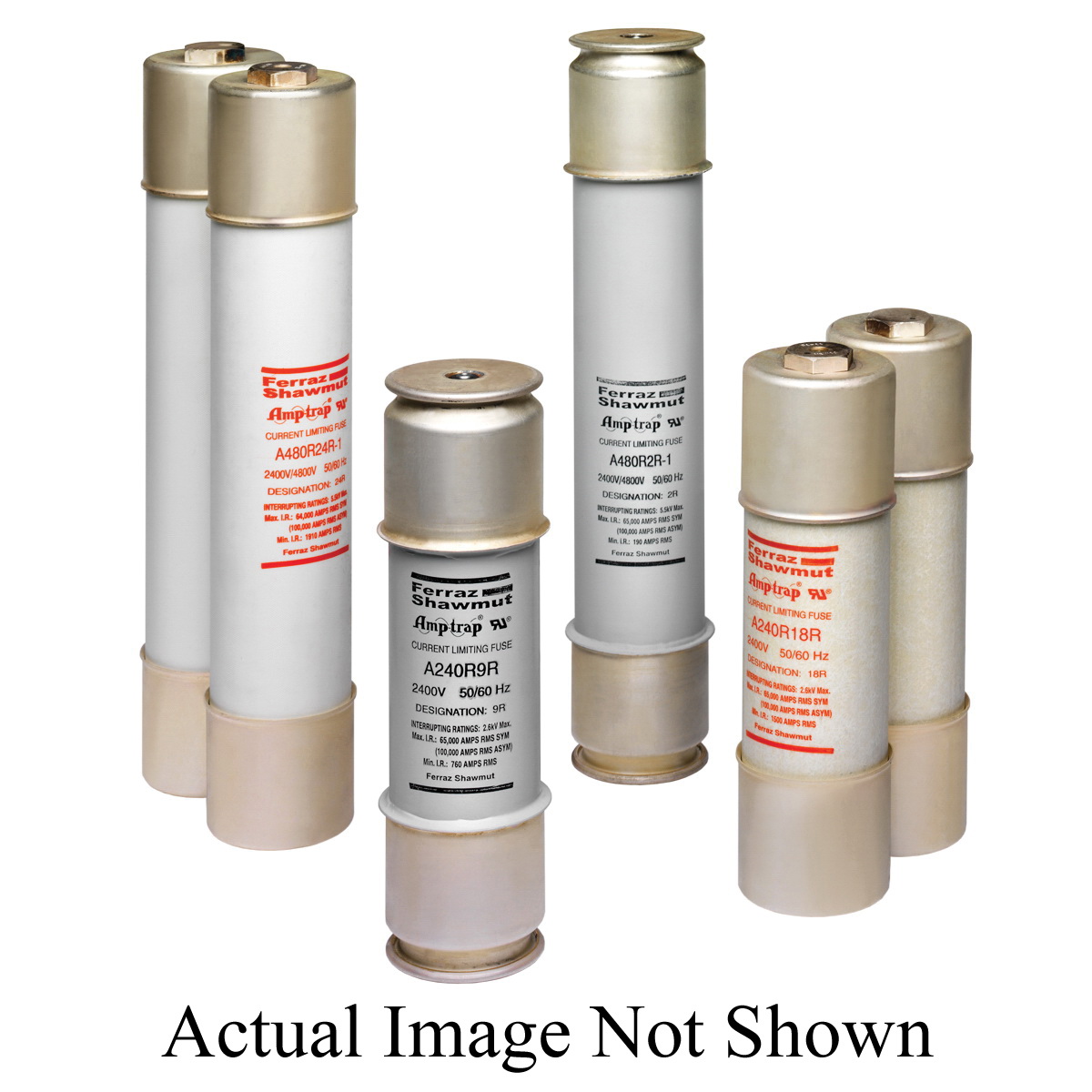

9F60LJD503 Type EJ2 1-Barrel Back Up Medium Voltage Motor Protection Fuse, 3 A, 5080 VAC, 50 kA, Class R, Ferrule Body
| Branch Name | Available |
|---|
MERSEN R-rated fuses are current limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-rated fuses are back up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-rated fuse size. These fuses come with a 3 (size D) or 4 (size E) in diameter barrels with ferrules and are mounted in spring reinforced clips.
Ferraz Shawmut Motor Protection Fuse, Type EJ2 1-Barrel Back Up Medium Voltage, Series: 9F60, Indicating, 3 A, 5080 VAC, 50 kA Interrupt, Class: R, 60 Hz, Clip/Ferrule Terminal, Clip Mount, Ferrule Body, Epoxy/GMG, 3 in Dia x 15.97 in L Body Size
| Body Size | : | 3 in Dia x 15.97 in L |
| Frequency Rating | : | 60 Hz |
| Indicating/Non-Indicating | : | Indicating |
| Material | : | Epoxy/GMG |
| Mounting Type | : | Clip |
| Series | : | 9F60 |
| Terminal Type | : | Clip/Ferrule |
| Type | : | Type EJ2 1-Barrel Back Up Medium Voltage |
| Amperage Rating | : | 3 A |
| Voltage Rating | : | 5080 VAC |
| Interrupt Rating | : | 50 kA |
| Class | : | R |
| Body Type | : | Ferrule |
