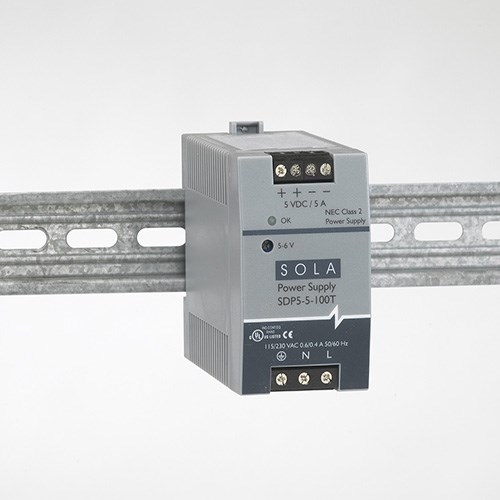

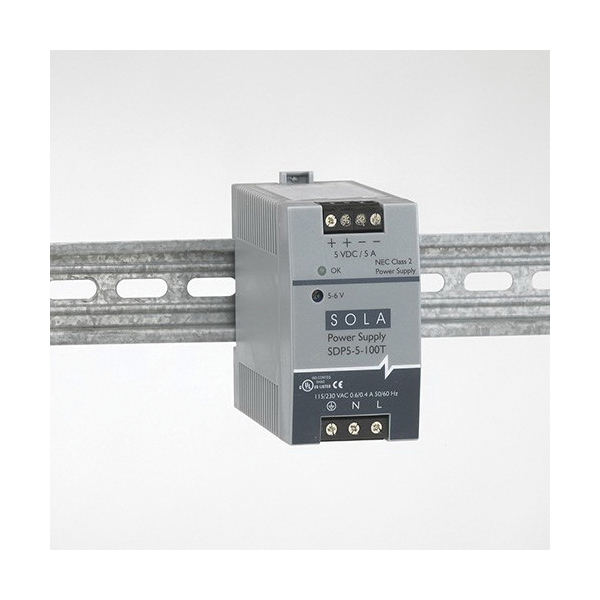

SDP5-5-100T Low Power DC Power Supply, 85 to 264 VAC/90 to 375 VDC Input, 5 to 6 VDC Output, 25 W, 5 A, DIN Rail Mount
| Branch Name | Available |
|---|
The compact, lightweight DIN rail power supplies come in output voltages from 5 to 48 VDC and power ratings of up to 100 Watts. these extra small, efficient units are designed specifically for the industrial environment. each unit is rated from -10 deg C to 70 deg C, with no derating necessary until above 60 deg C. Many extra "industrial" features are standard for the SDP PowerBoost overload circuitry can start up industrial loads (i.e. motors, relays, solenoids and DC-DC converters), that can cause ordinary power supplies to foldback or shutdown. each unit contains a DC indicator and front panel adjustment potentiometer. with the SolaHD SDP series, you can count on a high grade design.
SolaHD SDP™ DC Power Supply, Low Power, 85 to 264 VAC/90 to 375 VDC Input, 5 to 6 VDC Output, 25 W, 5 A, 47 to 63 Hz, DIN Rail Mount, Plastic Case, 3.58 in Width, 1.77 in Depth, 2.95 in Height
| Case Material | : | Plastic |
| Depth | : | 1.77 in |
| Frequency Rating | : | 47 to 63 Hz |
| Height | : | 2.95 in |
| Type | : | Low Power |
| Width | : | 3.58 in |
| Input Voltage | : | 85 to 264 VAC/90 to 375 VDC |
| Output Voltage | : | 5 to 6 VDC |
| Power Rating | : | 25 W |
| Amperage Rating | : | 5 A |
| Mounting Type | : | DIN Rail |
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_1d837d1f28b1e59d6460d539d6adc3550677c6091fc17cdb40b4bb272c3dcdc5.pdf
Warranty Information
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f8c93def9bddb1dad7f89ca4fe1ceaeb5bb41b739f1a34f124b284dcc4bf140f.pdf
