Non Stock

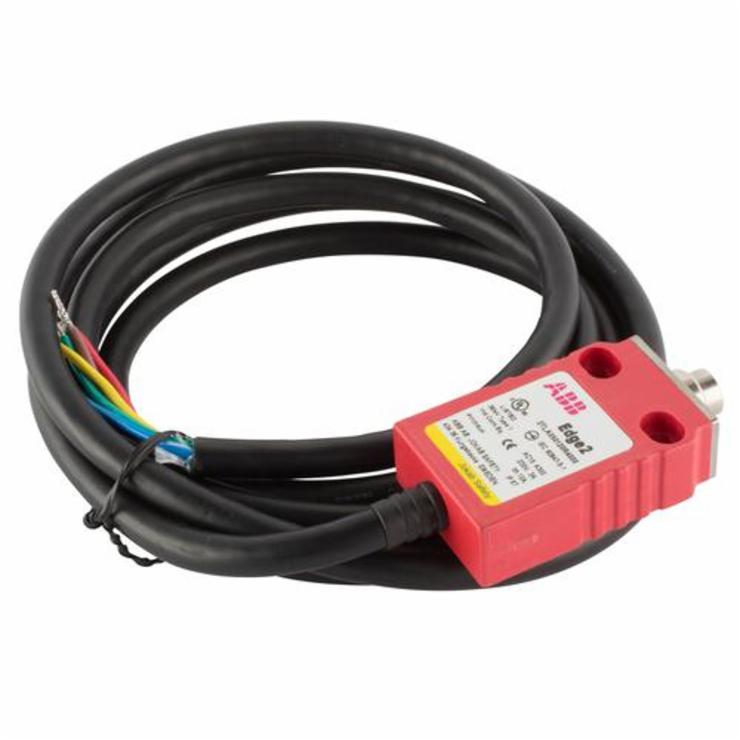

ABB Jokab Safety® 2TLA050120R4000 Edge 2 Standard Duty Safety Limit Switch, 240 VAC, 3 A, Pin Plunger Actuator, 1NO-2NC Contact, 3 Poles
| Branch Name | Available |
|---|
ABB Jokab Safety® Safety Limit Switch, Standard Duty, Series: Edge 2, 240 VAC, 3 A, 1NO-2NC Contact Configuration, 3 Pole, Slow/Snap Action, Pin Plunger Actuator, 3 m End Wired Cable Connection, IP67 Enclosure, Surface/Bracket Mounting, 2.52 x 0.63 x 1.38 in Size, 5000000 Cycles Operating Cycles, -25 to 80 deg C Operating, Plastic, Red
| Action | : | Slow/Snap |
| Color | : | Red |
| Connection Type | : | 3 m End Wired Cable |
| Enclosure Type | : | IP67 |
| Material | : | Plastic |
| Mounting Type | : | Surface/Bracket |
| Operating Cycles | : | 5000000 Cycles |
| Operating Temperature | : | -25 to 80 deg C |
| Series | : | Edge 2 |
| Size | : | 2.52 x 0.63 x 1.38 in |
| Type | : | Standard Duty |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 3 A |
| Actuator | : | Pin Plunger |
| Contact Configuration | : | 1NO-2NC |
| Number of Poles | : | 3 |
