Eaton series C molded case circuit breakers are used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC/250 VDC with current ratings up to 2500 A.

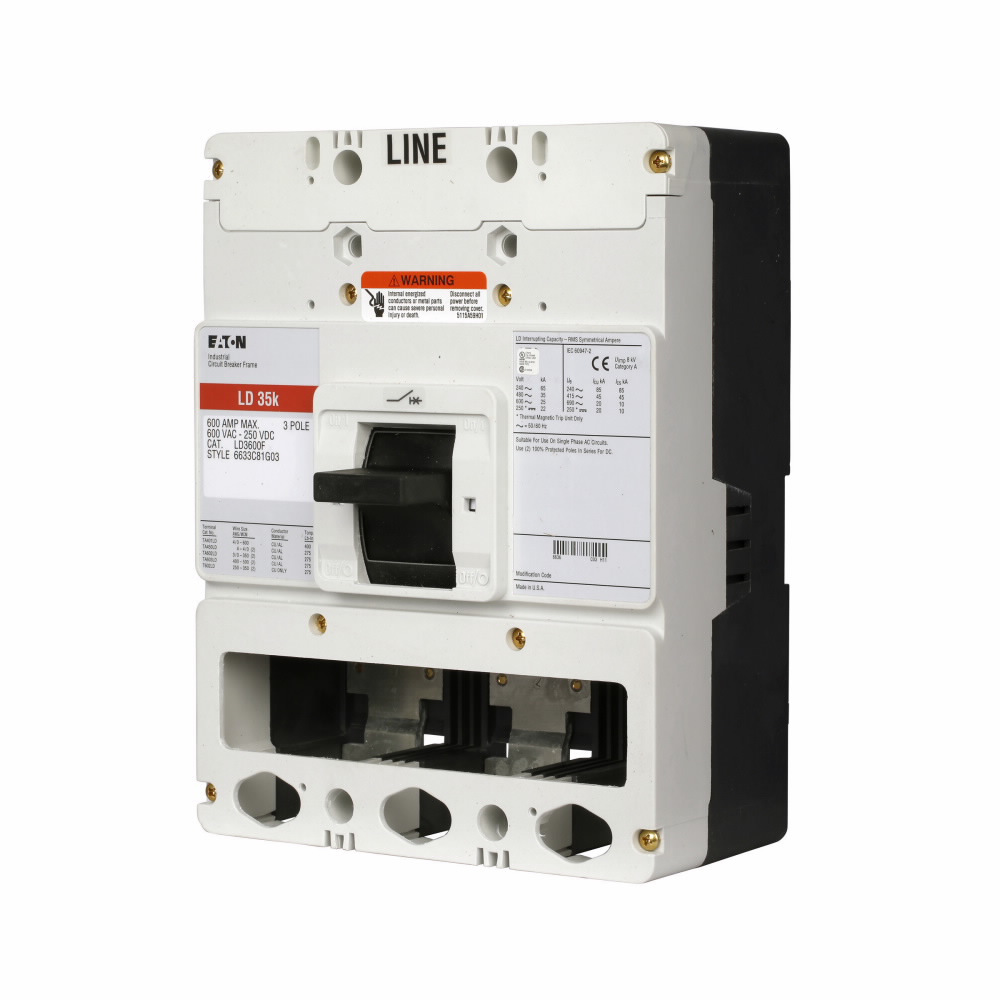

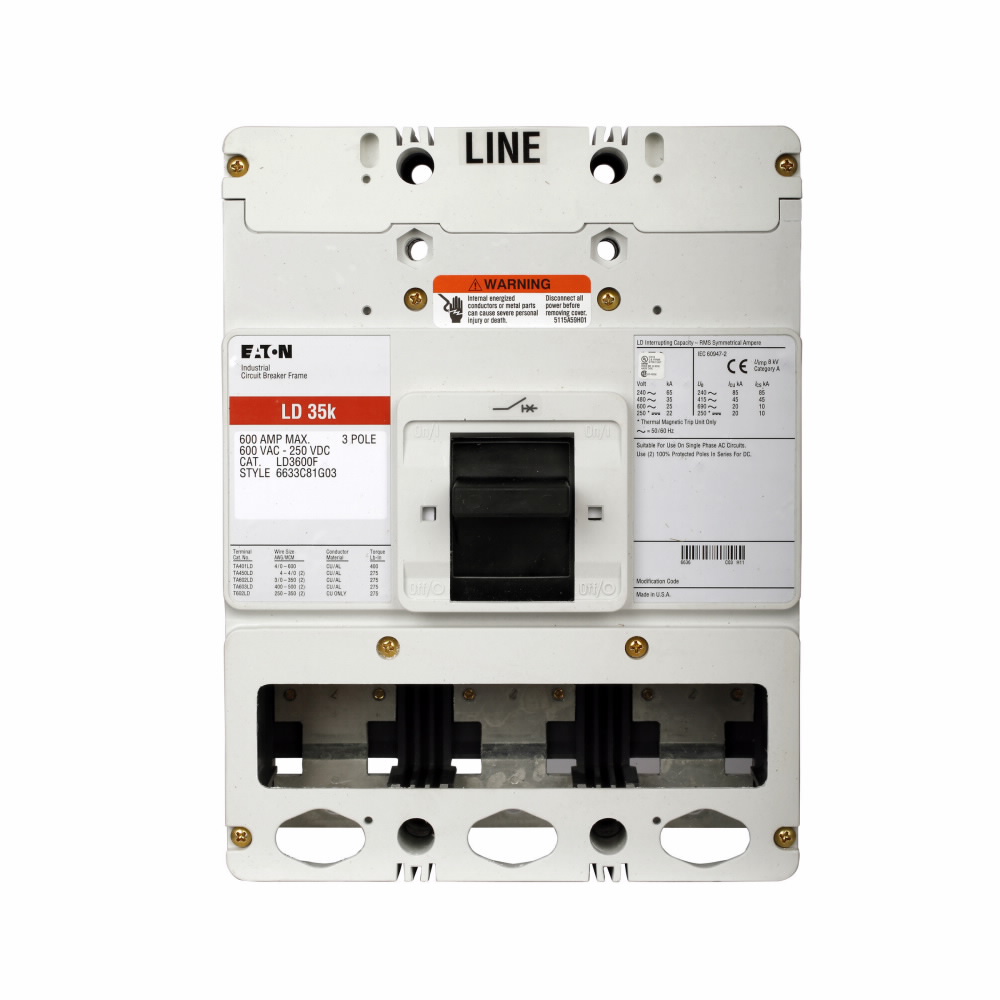

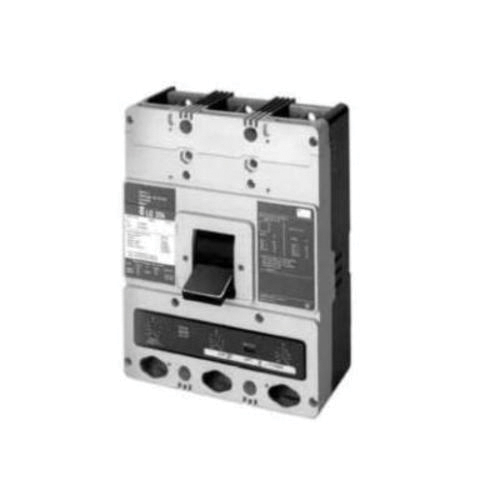

EATON Breaker Frame, 600 VAC, 250 VDC, 600 A, 3 Pole, Line/Load Terminal, 35/65 kA IR, For Use With: C Series Type LD L-Frame Electronic Interchangeable/Fixed Thermal Magnetic Trip Molded Case Circuit Breaker, Specifications: 65 kA at 240 VAC, 35 kA at 480 VAC Interrupt Rating, 50/60 Hz, 8-1/4 in L x 8-1/4 in W x 8-1/4 in H Dimensions

• Patented contact design features high speed "blow open" action, resulting in superior performance
• Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
• All L-frame circuit breakers with non-interchangeable trip units are suitable for reverse feed use
• Standard interrupting capacity

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f1131865a68a4684136a65b55c7753da0b9975471b9b6c26b491eed861fc1bdf.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_05436723ef8704acaa9e48c17ddf3ae0df68b42bdbe5b219c8611a12c483a0f3.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_3c27a75297cac37661049609a1edfe9af986ad2ee5dd1258209151761e58277b.pdf
