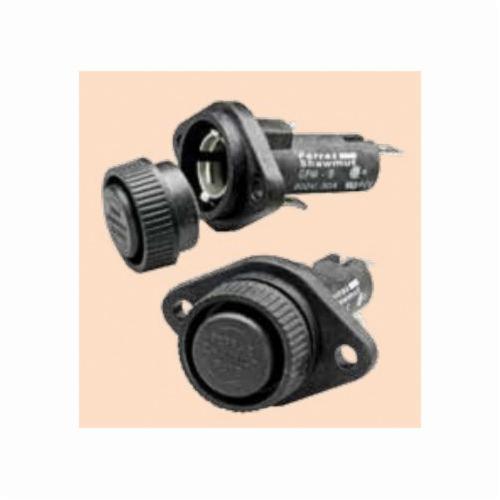

GPM-BRR Miniature Fuse Holder, 600 VAC, 30 A, 1 Pole
| Branch Name | Available |
|---|
Mersen GPM panel mount fuse holders are in sizes to accommodate 5x20 mm, 1/4 x1-1/4 in, Class CC and midget (1-1/2 x 13/32 in) fuses. All 30 A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10 A and 15 A holders are for front mounting only.
Ferraz Shawmut Fuse Holder, Miniature, Series: GPM, 600 VAC, 30 A, 1 Pole, 1, Class: CC, 1/4 in Quick-Connect/Solder, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: ATQR, ATDR and ATMR Series Fuse, Polycarbonate, 0.95 in Dia x 2.42 in L
| Class | : | CC |
| Connection Type | : | 1/4 in Quick-Connect/Solder |
| Dimensions | : | 0.95 in Dia x 2.42 in L |
| Fuse Diameter | : | 13/32 in |
| Fuse Length | : | 1-1/2 in |
| Material | : | Polycarbonate |
| Mounting Type | : | Panel |
| Number of Phases | : | 1 |
| Series | : | GPM |
| Suitable For Use With | : | ATQR, ATDR and ATMR Series Fuse |
| Type | : | Miniature |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 1 |
