The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.

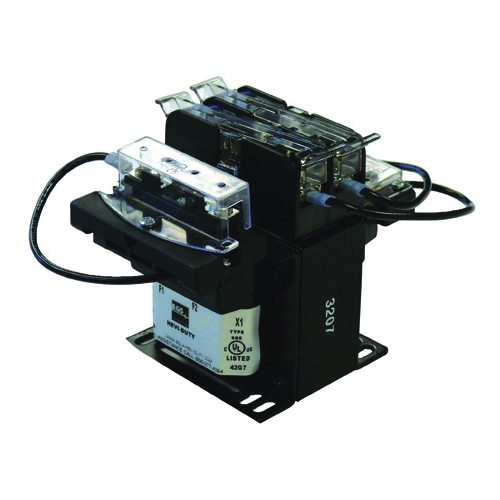

SolaHD Control Transformer, Type 3AG Encapsulated, Series: SBE, 240/480 VAC Primary, 120 VAC Secondary, 0.1 kVA Power, 50/60 Hz Frequency, 1 ph, Lead Wire Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 3.39 in L x 4.36 in W x 4.41 in H Dimensions

• Interleaved copper windings reduce I2R losses and maximize efficiency
• Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
• Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
• Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
• Heavy gauge steel mounting plate
• Mounting dimensions are compatible with similar control transformers
• 131 deg F rise, 105 deg C insulation system to minimize heat
• Factory installed primary fuse holder class CC and secondary fuse holder glass or ceramic (type 3AG, 1/4 in x 1-1/4 in fuse type)
