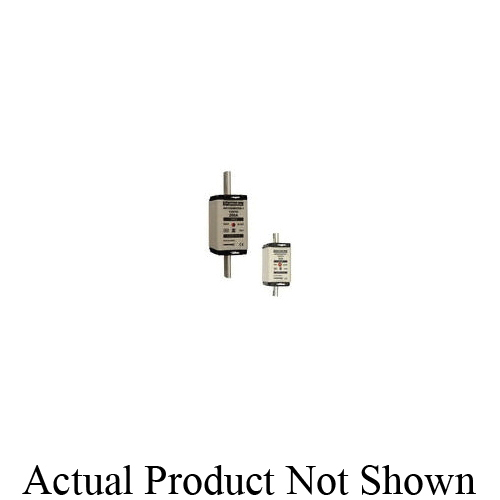

B229725 NH Series Type gG Size 00 Square Low Voltage Fuse Link With Double Indicator, 690 VAC, 125 A, Ceramic
| Branch Name | Available |
|---|
The NH system is classified among plug-in fuse systems and is composed of fuse-base (possibly including terminal covers and phase barriers), fuse link with blade contact, fuse link replacement device (LV HRC fuse puller) since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional. Type gG NH fuse links are full range breaking capacity fuse links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short circuit currents.
Ferraz Shawmut Fuse Link, Type gG Size 00 Square Low Voltage, Series: NH Series, 690 VAC, 125 A, 10 W, 50 Hz, Rated Breaking Capacity: 80 kA, Clip Mount, Ceramic, 60 mm H x 30 mm W x 78.5 mm D
| Dimensions | : | 60 mm H x 30 mm W x 78.5 mm D |
| Frequency Rating | : | 50 Hz |
| Mounting Type | : | Clip |
| Power Rating | : | 10 W |
| Rated Breaking Capacity | : | 80 kA |
| Series | : | NH Series |
| Type | : | Type gG Size 00 Square Low Voltage |
| Voltage Rating | : | 690 VAC |
| Amperage Rating | : | 125 A |
| Material | : | Ceramic |
