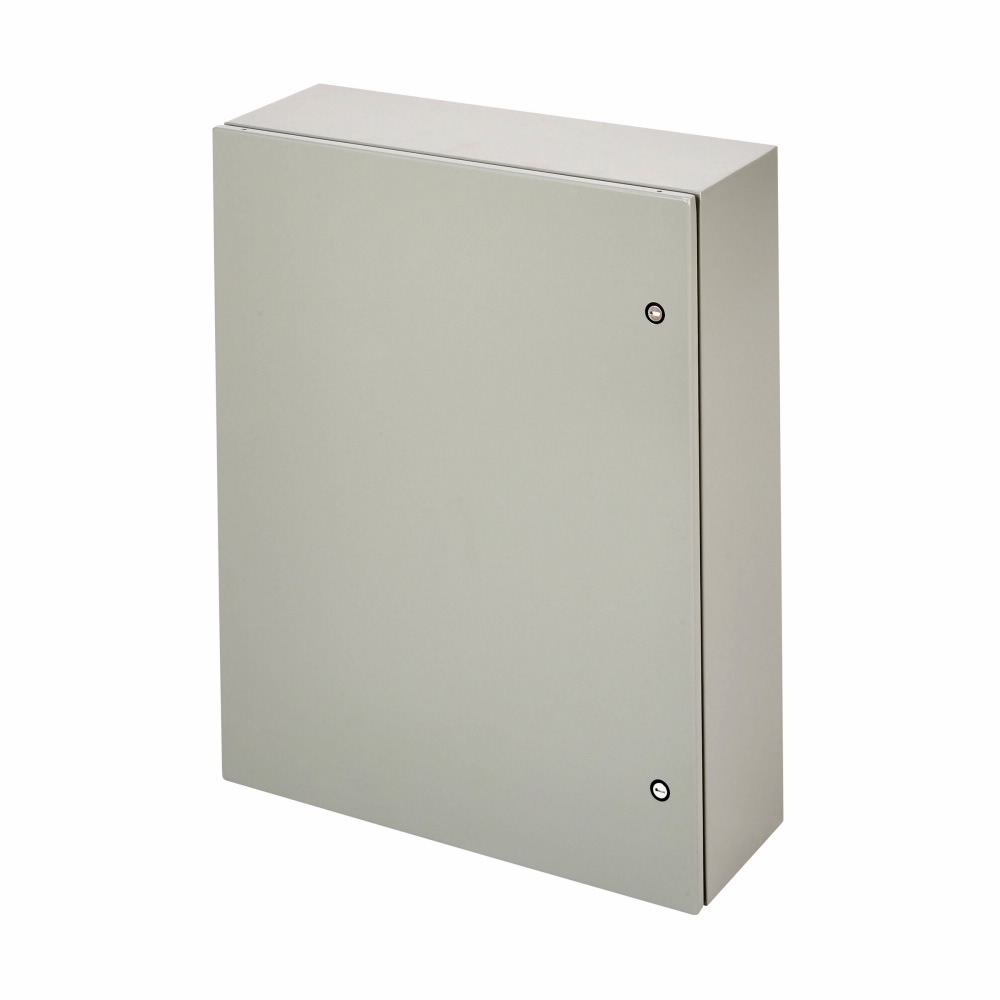

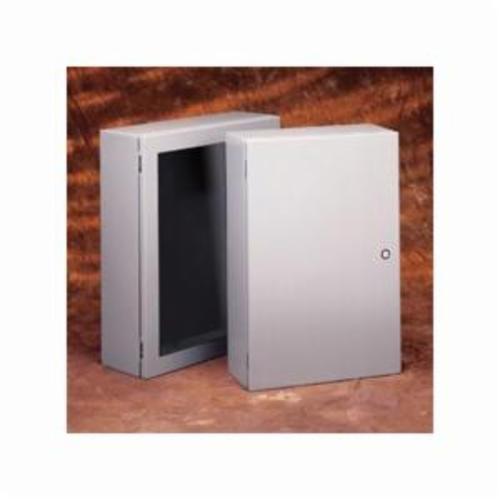

B-Line Wall Mount Enclosure, Single Door, Series: Premier, 10 in Length, 8 in Width, 6 in Depth, NEMA 4/12, Hinged Cover, 8 in H x 6 in W Panel, Quarter Turn Latch Lock, Wall Mount, Steel, Polyester Powder Coated, Gray

• Enclosure and door are fabricated from code gauge steel
• All continuous welded seams are finished smooth
• Hardware kit provided contains grounding hardware, 0.312 to 18 flanged hex nuts for panel mounting and sealing washers for body mounting holes
• Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
• Reduced width flange design increases enclosure opening
• Ground stud provided on enclosure body with provision on door
• Enclosure mounting holes in body provided for direct mounting or optional mounting feet
• Doors are secured to the body with a unique spring loaded hidden hinge design on one side and slotted quarter-turn flush latches on the opposite side
• Doors are easily removed and interchangeable
• Door has a seamless poured in place gasket
• Door opens 170 deg for easy access
• Window door enclosures feature flush mounted clear polycarbonate window
• Protects against circulating and windblown dust, falling dirt, dripping non-corrosive liquids, rain, splashing water and hose directed water
• Polyester powder coated over wash and phosphate undercoat 16 ga steel material

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f8afb3a9e146810f1e676d72bb928d14b464f2b7eebf662337ac02504afe0ce4.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_46078b9c9bcdc03910c158517247c7cfb6afbbacab8b4e1299fb4eea4f799957.pdf
• Warranty Information https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5.pdf
