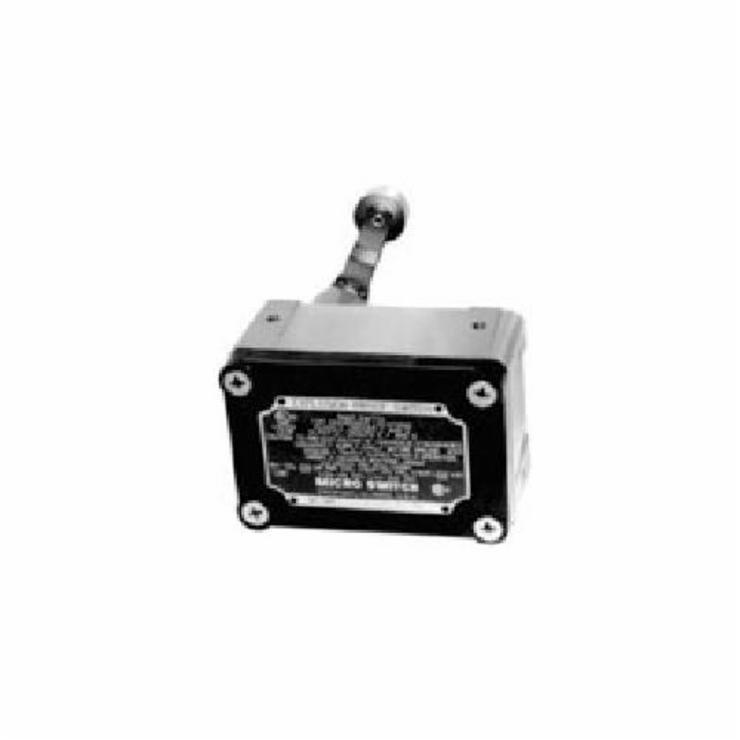

Honeywell MICRO SWITCH EX-AR30 EX Series Explosion-Proof Limit Switch, 480 VAC/250 VDC, 0.25 to 15 A, Side Rotary Lever Actuator, 1NO-1NC, SPDT Contact, 1 Poles
| Branch Name | Available |
|---|
MICRO SWITCH™ EX Series Explosion-Proof Limit Switches, Side Rotary, 1NC 1NO SPDT Snap Action, 0.5 in - 14NPT conduit. MICRO SWITCH™ EX Series switches feature the smallest UL-listed housings available for use in hazardous locations. The EX Series switch cavity is designed to cool expanding gases below the ignition temperature of the surrounding explosive atmosphere. The EX Series is capable of switching up to 20 amps while providing ample wiring space for ease of installation. Single and double conduit openings are available. Dual conduit openings may allow for through wiring of multiple switches. The EX Series can be mounted from any of the switch's four sides.
Honeywell MICRO SWITCH Explosion-Proof Limit Switch, Series: EX Series, 480 VAC/250 VDC, 0.25 to 15 A, 50/60 Hz Frequency, 1NO-1NC, SPDT Contact Configuration, 1 Pole, Snap Action, Side Rotary Lever Actuator, 1/2-14 NPT Connection, NEMA 1 Enclosure, -40 to 71 deg C Operating, Cast Aluminum
| Action | : | Snap |
| Connection Type | : | 1/2-14 NPT |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Cast Aluminum |
| Operating Temperature | : | -40 to 71 deg C |
| Series | : | EX Series |
| Voltage Rating | : | 480 VAC/250 VDC |
| Amperage Rating | : | 0.25 to 15 A |
| Actuator | : | Side Rotary Lever |
| Contact Configuration | : | 1NO-1NC, SPDT |
| Number of Poles | : | 1 |
