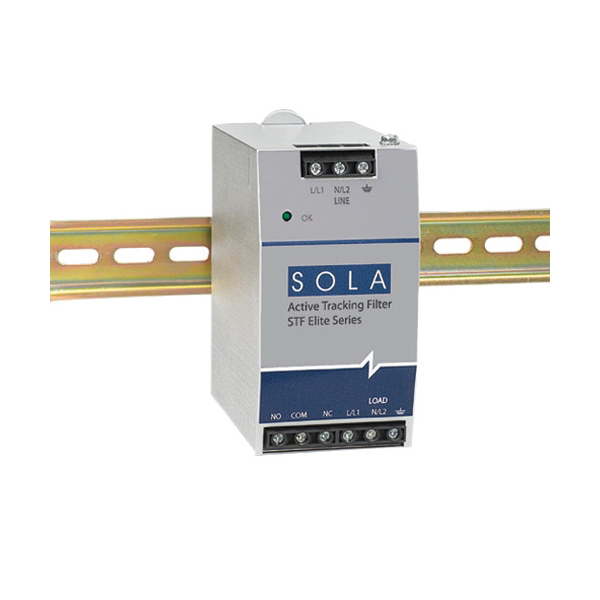

STFE030-10N STFE Elite Active Tracking Filter, 3 A at 120 VAC, 100 kHz to 50 MHz, 2 Wires, Metal
STFE Elite series combines active tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
SolaHD Active Tracking Filter, Series: STFE Elite, 3 A at 120 VAC Electrical Rating, 100 kHz to 50 MHz Bandwidth, 2 Wires, 1 ph, 24 AWG Wire, 45000 A Peak Surge Current, Modes of Protection: L-N/L-G/N-G, <0.5 ns Normal Mode, < 5 ns Common Mode Response, LED Indicator, Class: Category A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz), Environmental Conditions: -40 to 50 deg C Operating, 0 to 95% Non-Condensing Relative Humidity, IP20 Enclosure, DIN Rail Mounting, Hard Wired Terminal, 4.56 in L x 2.56 in W x 4.88 in H Dimensions, Metal
| Class | : | Category A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz) |
| Dimensions | : | 4.56 in L x 2.56 in W x 4.88 in H |
| Enclosure Type | : | IP20 |
| Environmental Conditions | : | -40 to 50 deg C Operating, 0 to 95% Non-Condensing Relative Humidity |
| Indicator Type | : | LED |
| Modes of Protection | : | L-N/L-G/N-G |
| Mounting Type | : | DIN Rail |
| Peak Surge Current | : | 45000 A |
| Phase | : | 1 |
| Response Time | : | <0.5 ns Normal Mode/< 5 ns Common Mode |
| Series | : | STFE Elite |
| Terminal Type | : | Hard Wired |
| Wire Size | : | 24 AWG |
| Electrical Ratings | : | 3 A at 120 VAC |
| Bandwidth | : | 100 kHz to 50 MHz |
| Number of Wires | : | 2 |
| Material | : | Metal |
