This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

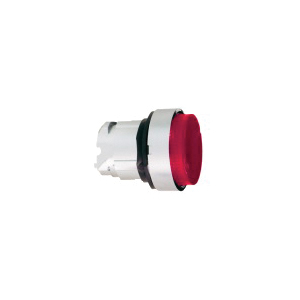

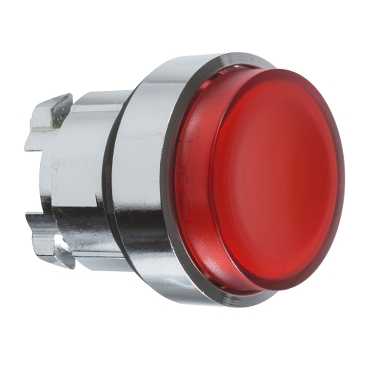

Schneider Electric Harmony™ Illuminated Pushbutton Head, Extended Projecting Standard, Series: ZB4, 22 mm, Round, UNMARKED Legend, Red Legend, Metal, Red

• Spring return operator
• IP65/IP66/IP69 conforming to IEC 60529/P69K degree of protection
• Chromium plated metal bezel
• Red projecting unmarked operator profile
• 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance
• -40 to 158 deg F operating temperature
• Momentary action

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_65fe95c83387e8d9f1c878e9f76c3e99d9b4728a8b30da70b2afddf405a80b2e.pdf
• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_805eca68cc420670791a2edc7ffdbb2282587c3c59799018055c5ddddf0542a7.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_490b578d4d4900c29f6396b053da8db3d98b326e684f9a4cf4bdf36214ed1abf.pdf
• Video Link https://www.youtube.com/watch?v=fRFG1d6JH7Q&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
