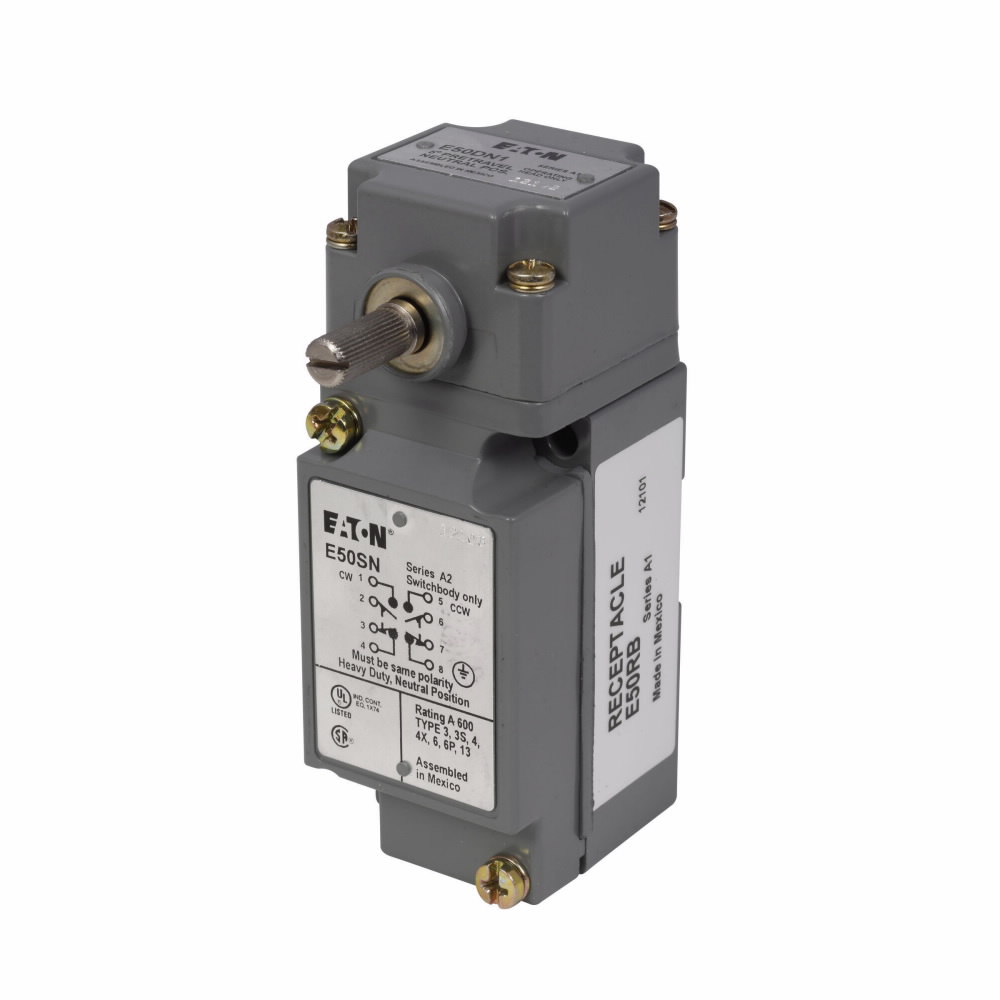

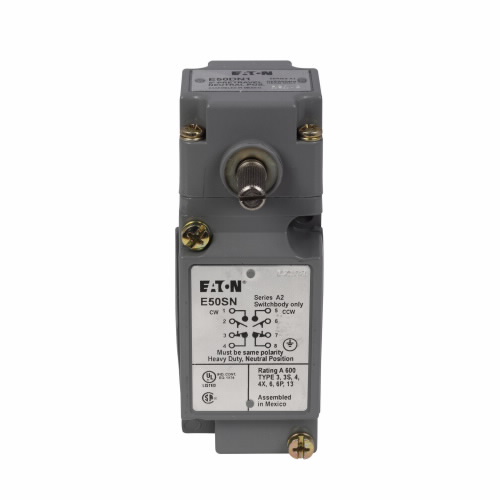

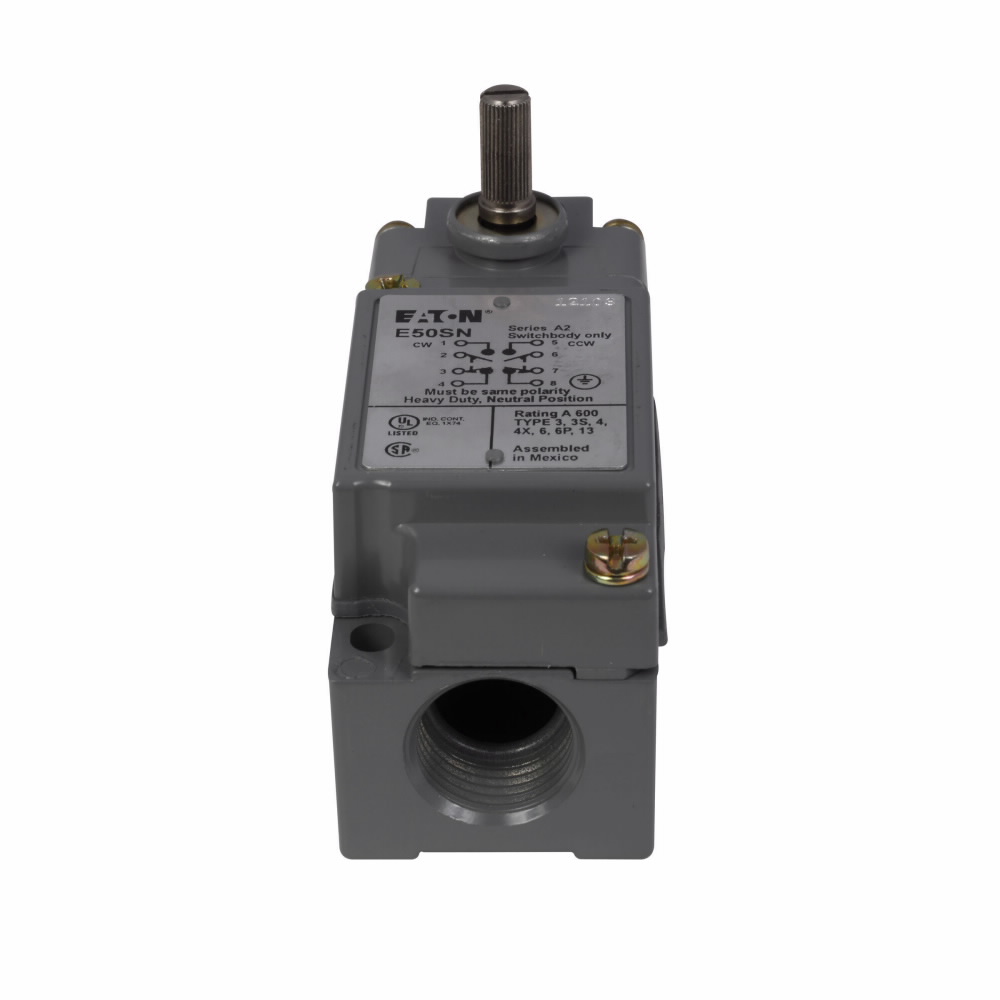

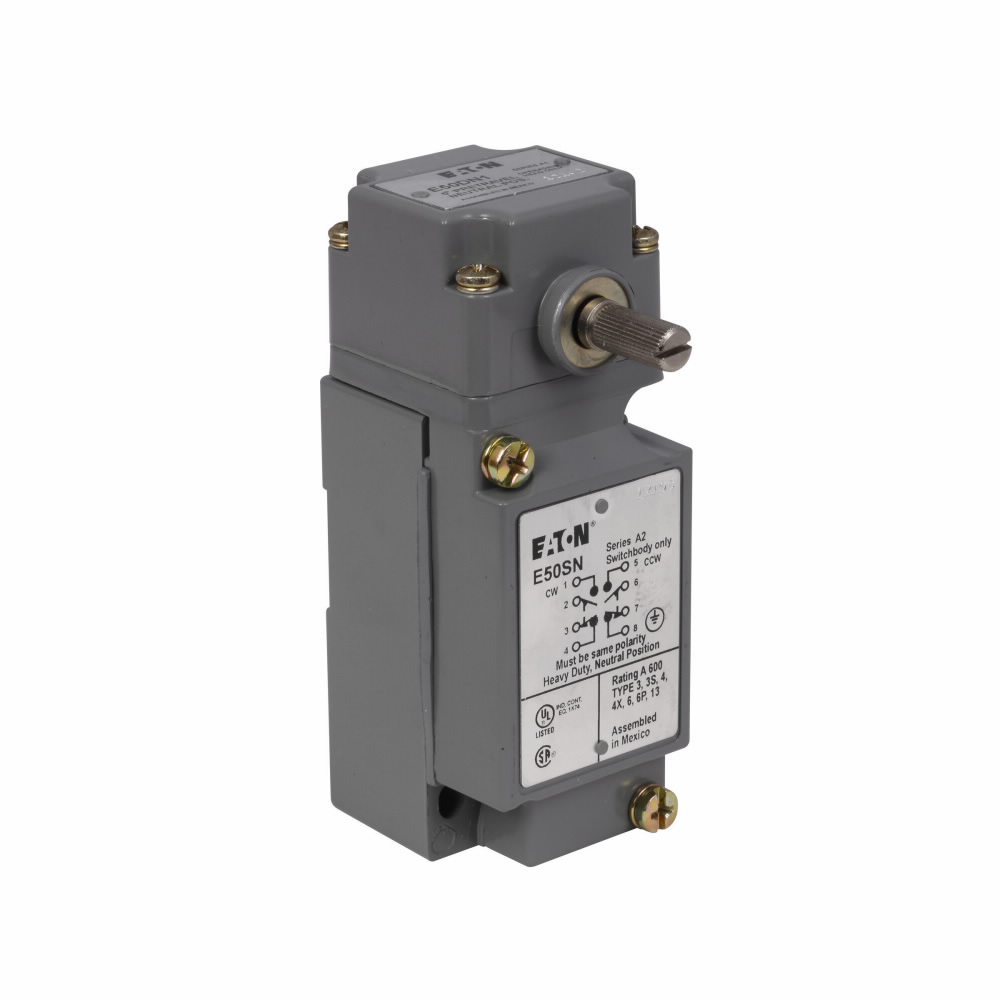

EATON Limit Switch, Heavy Duty Special Purpose, Series: E50, 240 VAC, 250 VDC, 1/10 A, 2NO-2NC, 10 A at 12 VAC, 1 A at 125 VDC Contact, Spring Return, Side Rotary, Screw, NEMA 1/3/3S/4/4X/6/6P/13/IP67, Plug-In Mount, 4.22 in L x 1.54 in W x 2.46 in H, 14 to 201 deg F Operating, Die Cast Zinc

• Cutler-Hammer E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs
• Standard Viton® gaskets, seals and boots and a zinc die cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, waste water treatment and other heavy duty industrial applications
• Mounting dimensions accommodate both us and DIN standards for easy retrofit installations
• Super bright 24 to 120 VAC/VDC LED indicating light versions simplify setup and troubleshooting operations
• Keyed, 4 direction head positioning
• Standard 90 deg total travel
• 1.8 in-lb maximum operating force
• 60 A AC, 1 A DC amperage rating
• 10A at 125 VAC, 1A at 125 VDC, 10A at 250 VAC, 1A at 250 VDC, 10 A at 480 VAC, 10 A at 600 VAC contact rating

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5e9ad6d456a9436a9c9f30b495e6a53d1a46e6f061a00d8a446c1ff4e5580f9b.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_03853a384924c336846d8d69c6b0e7750cdd323fba1352a993ad63de434eda1b.pdf
