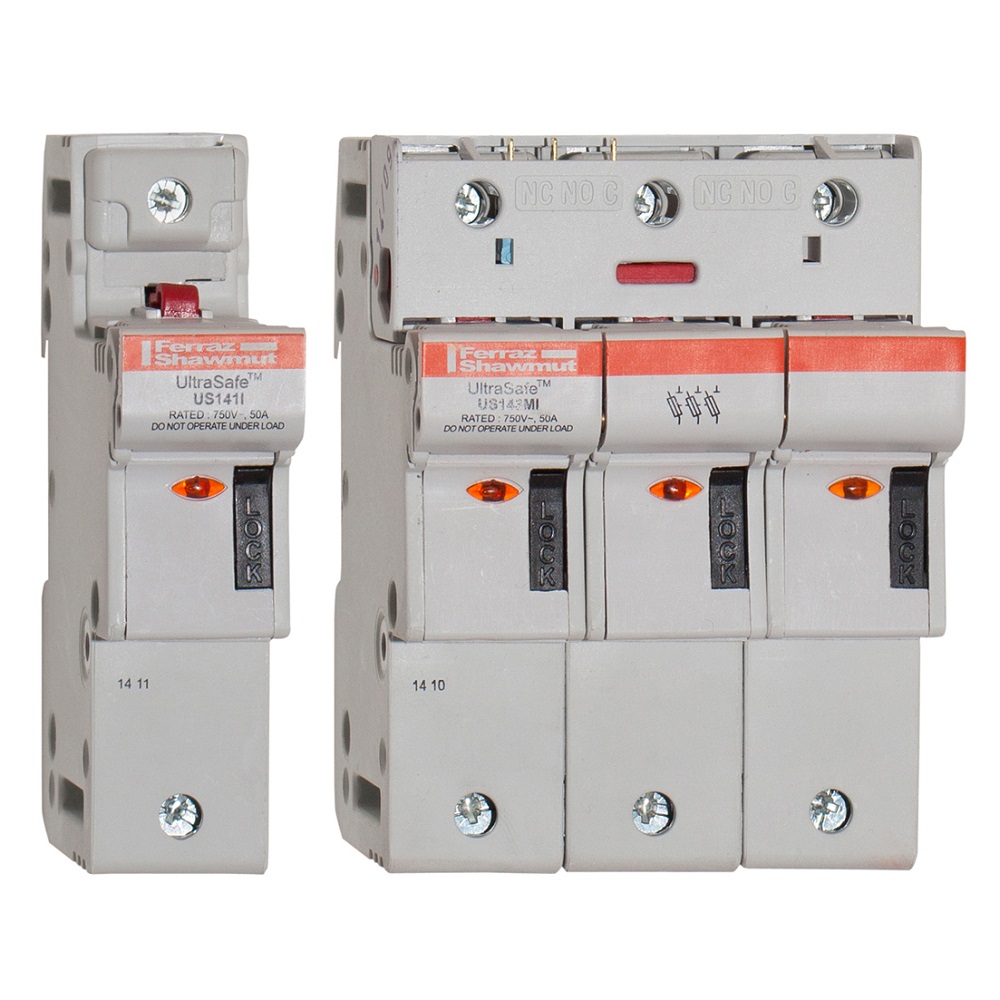

A331154 US14 Modular Fuse Holder With Blown Fuse Indicator, 750 VAC/VDC, 50 A, 5 W, 14 to 2 AWG Wire, 1 Pole
| Branch Name | Available |
|---|

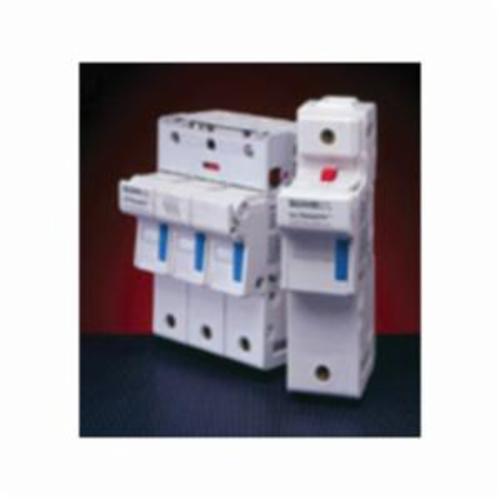

The innovative and comprehensive UltraSafe™ range of Mersen fuse holders. Modular fuse holders are finger safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Ferraz Shawmut UltraSafe™ Modular Fuse Holder, Series: US14, 750 VAC/VDC, 50 A, 5 W, 1 Pole, 1 Phase, Pressure Plate, 14 to 2 AWG Wire, DIN Rail Mount, 51 mm Fuse Length, 14 mm Fuse Dia, -25 to 60 deg C, For Use With: Cylindrical Fuse Link, Thermoplastic, 107 mm H x 26.5 mm W x 94 mm D
| Connection Type | : | Pressure Plate |
| Dimensions | : | 107 mm H x 26.5 mm W x 94 mm D |
| Fuse Diameter | : | 14 mm |
| Fuse Length | : | 51 mm |
| Material | : | Thermoplastic |
| Mounting Type | : | DIN Rail |
| Number of Phases | : | 1 |
| Series | : | US14 |
| Suitable For Use With | : | Cylindrical Fuse Link |
| Temperature Rating | : | -25 to 60 deg C |
| Voltage Rating | : | 750 VAC/VDC |
| Amperage Rating | : | 50 A |
| Power Rating | : | 5 W |
| Wire Size | : | 14 to 2 AWG |
| Number of Poles | : | 1 |
