EATON's freedom series adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. they have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. they also feature a full line of snap-on accessories common to both IEC and NEMA devices.

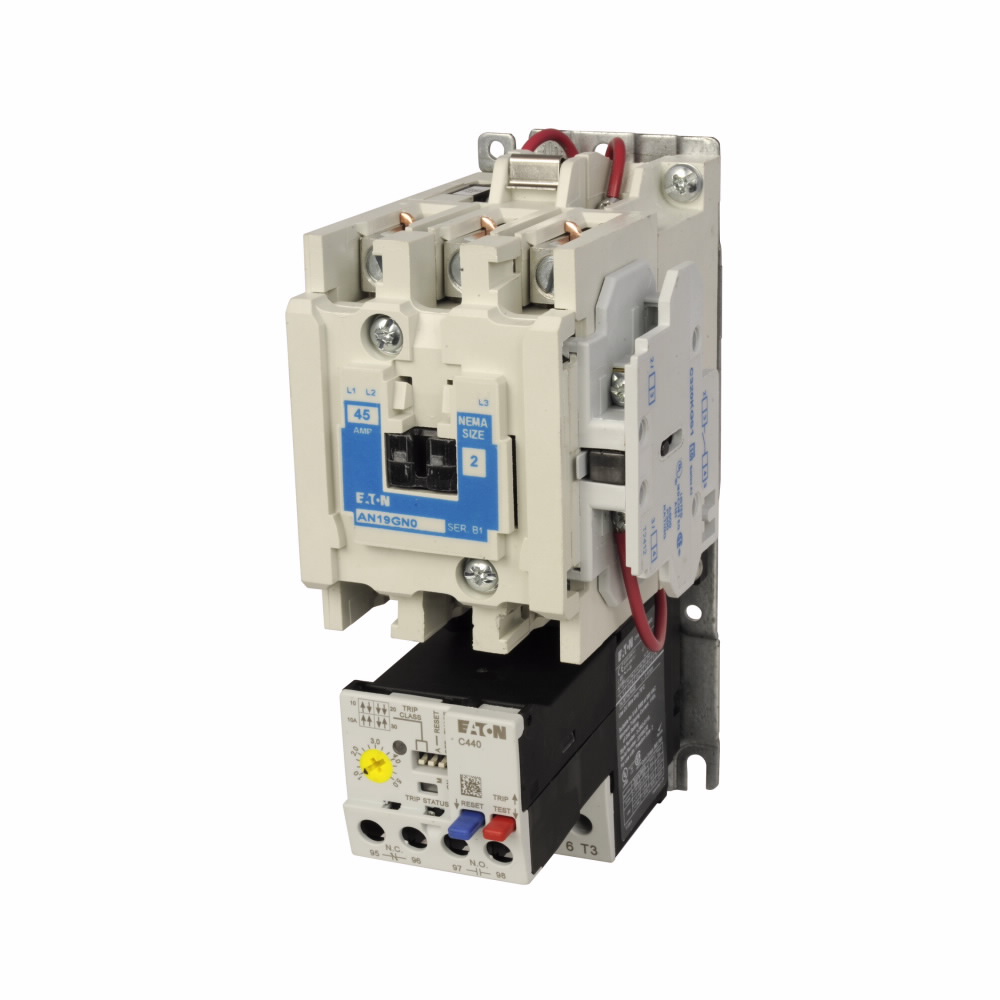

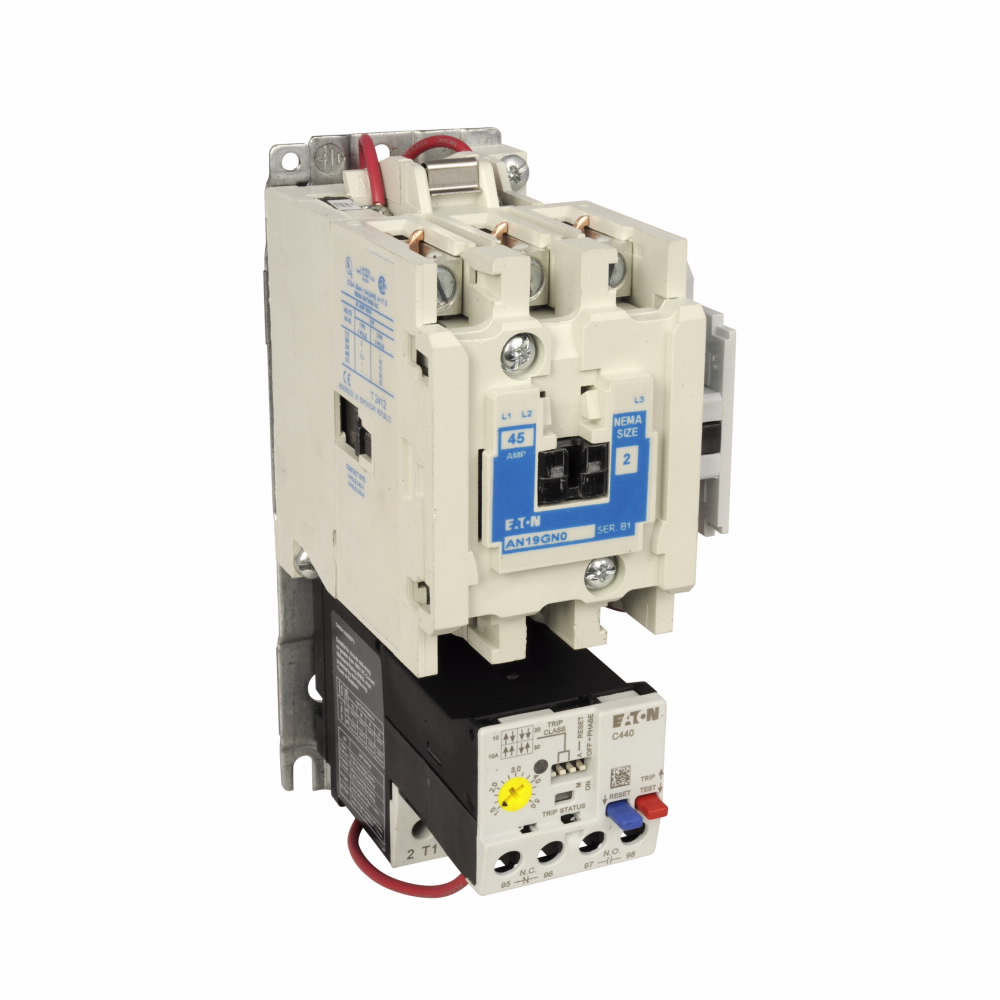

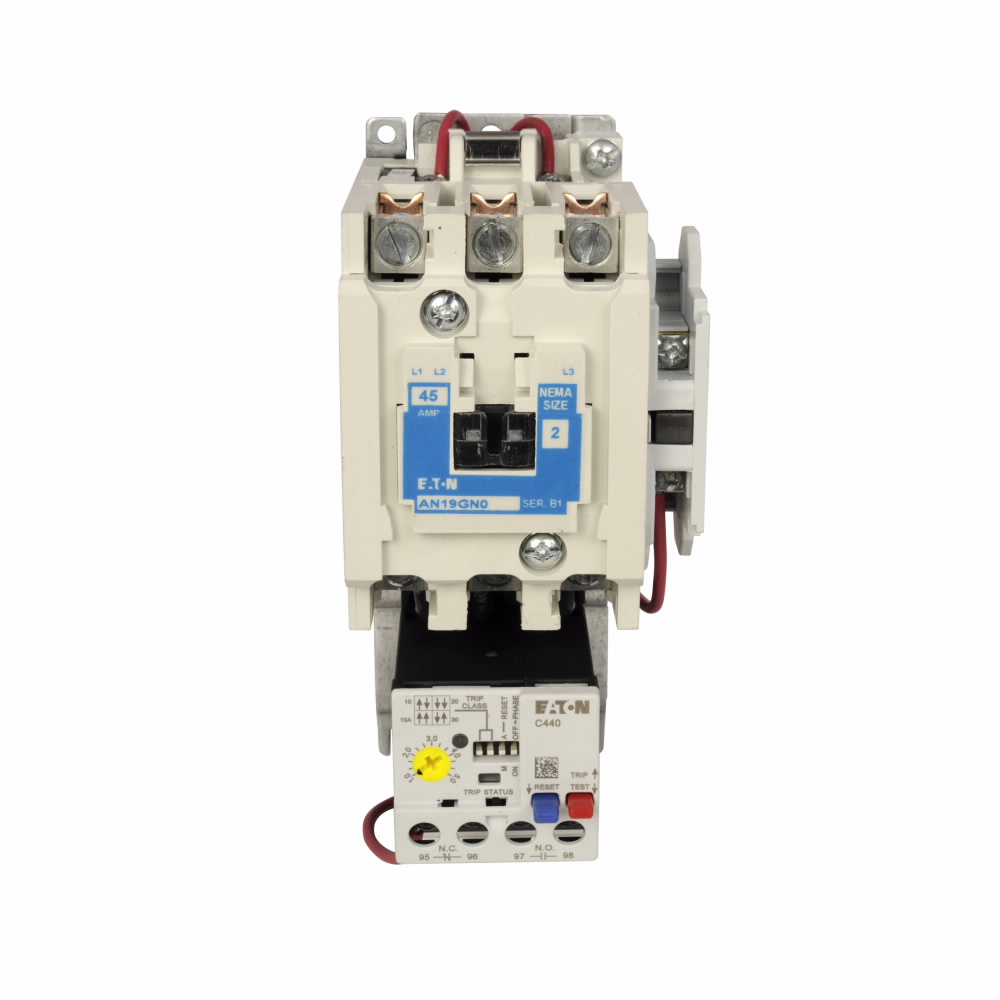

EATON NEMA Starter, Full Voltage Open, Series: Freedom, 600 VAC, 45 A, 50/60 Hz Frequency, 25 hp Motor, 110/120 VAC Coil, 3 Pole, Non-Reversing Action, C440 Electronic Overload Relay, 9 to 45 A Full Load, NEMA 2 Enclosure

• Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring
• Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
• Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
• 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480 VAC

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f05ef61487faa4e116d4581bd210319459a5308d6ba477c67cae41051f9c219e.pdf
