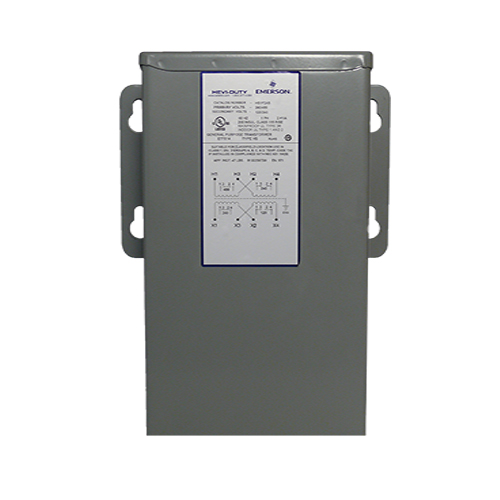

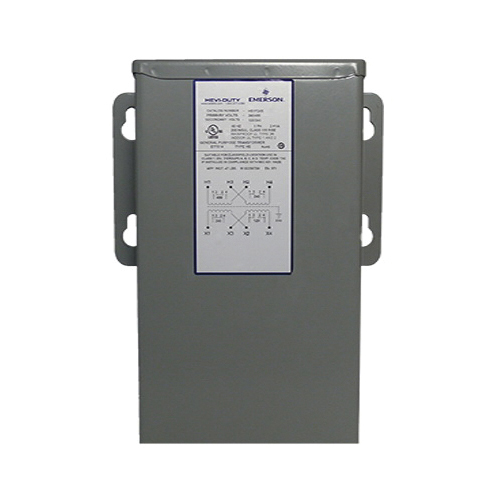

HS19B50 Non-Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 0.05 kVA, 60 Hz, 1 Phase
| Branch Name | Available |
|---|
Buck-boost transformers are small, 1-phase, dry-type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC article 210.9, exception 1, when field connected as an autotransformer.
SolaHD Buck Boost Transformer, Non-Encapsulated, Series: HS19, 120 x 240 VAC Primary, 12/24 VAC Secondary, 0.05 kVA, 60 Hz, 1 Phase, 0.208/0.104 A Primary, 0.416/0.208 A Secondary Maximum, Copper Lead Wire, NEMA 3R, 3 in L x 4 in W x 6 in H
| Connection Type | : | Copper Lead Wire |
| Dimensions | : | 3 in L x 4 in W x 6 in H |
| Enclosure Type | : | NEMA 3R |
| Maximum Amperage Rating | : | 0.208/0.104 A Primary, 0.416/0.208 A Secondary |
| Series | : | HS19 |
| Type | : | Non-Encapsulated |
| Primary Voltage | : | 120 x 240 VAC |
| Secondary Voltage | : | 12/24 VAC |
| Power Rating | : | 0.05 kVA |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 |
