SCD30S5-DN 30w 5v Dc-dc Din Swi
| Branch Name | Available |
|---|

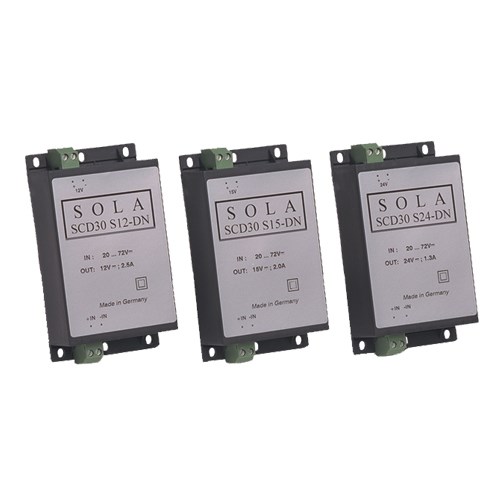

The SolaHD SCD series compact, rugged DC to DC converters are power supplies designed to power industrial control instrumentation devices and equipment where AC power is not convenient or accessible. With high reliability and wide input range. These units can operate through the most difficult factory floor conditions around the globe. User friendly applies to these unique power supplies that feature easy-to-install DIN rail and chassis mounting. Terminations are also easy to access and simple to wire, encapsulated design meets IP20 specifications for use in harsh environments.
SolaHD DC to DC Converter, 1-Phase Encapsulated Switching, Series: SCD, 20 to 70 VDC Input, 5 VDC Output, 3 A Input, 5 A Output, Screw/Clamp Terminal, NEMA 1/IP20, Chassis/DIN Rail Mount, -25 to 65 deg C, 4.72 in L x 2.55 in W x 1.29 in H, Metal
| Enclosure Type | : | NEMA 1/IP20 |
| Material | : | Metal |
| Mounting Type | : | Chassis/DIN Rail |
| Series | : | SCD |
| Size | : | 4.72 in L x 2.55 in W x 1.29 in H |
| Temperature Rating | : | -25 to 65 deg C |
| Terminal Type | : | Screw/Clamp |
| Type | : | 1-Phase Encapsulated Switching |
| Input Voltage | : | 20 to 70 VDC |
| Output Voltage | : | 5 VDC |
| Input Amperage | : | 3 A |
| Output Amperage | : | 5 A |
