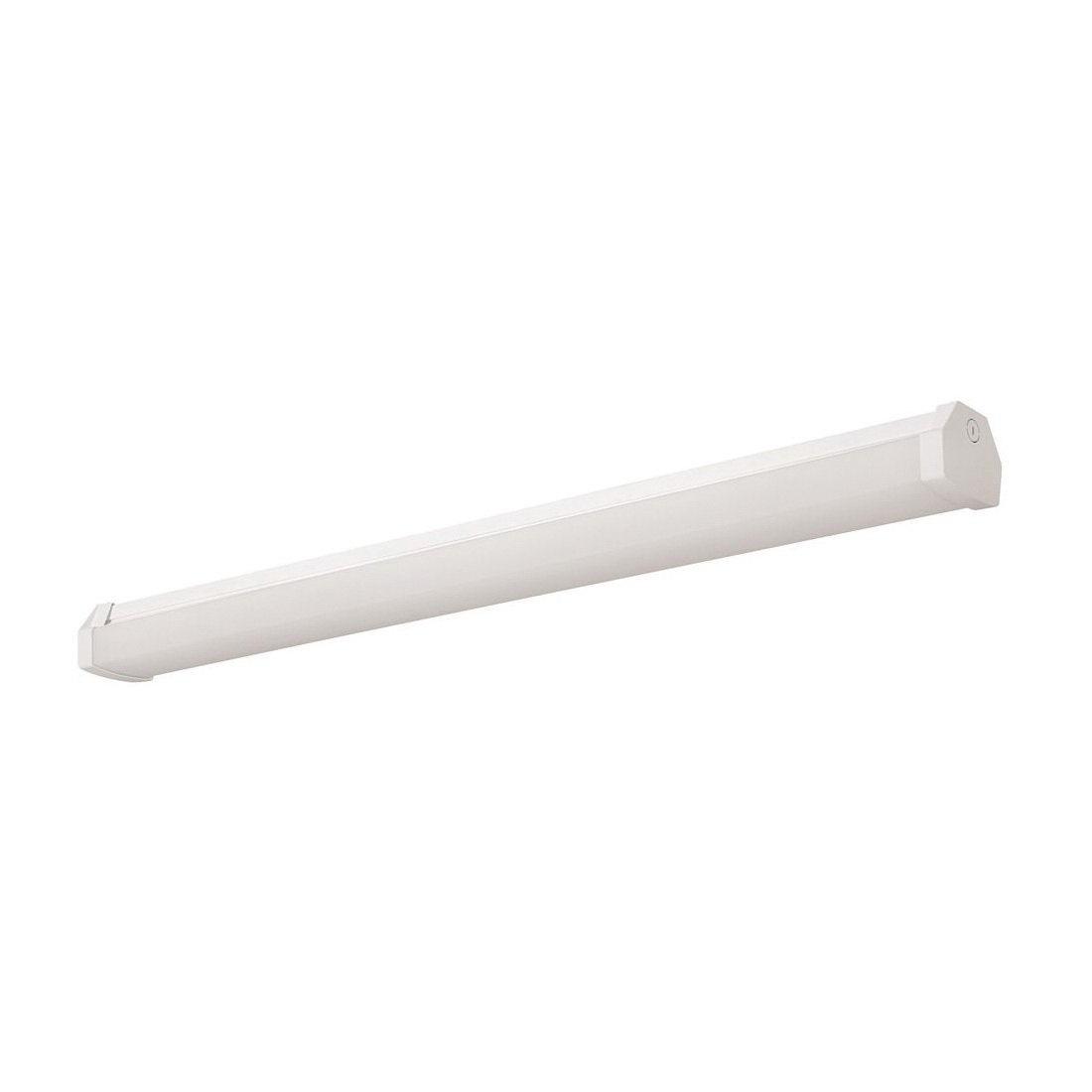

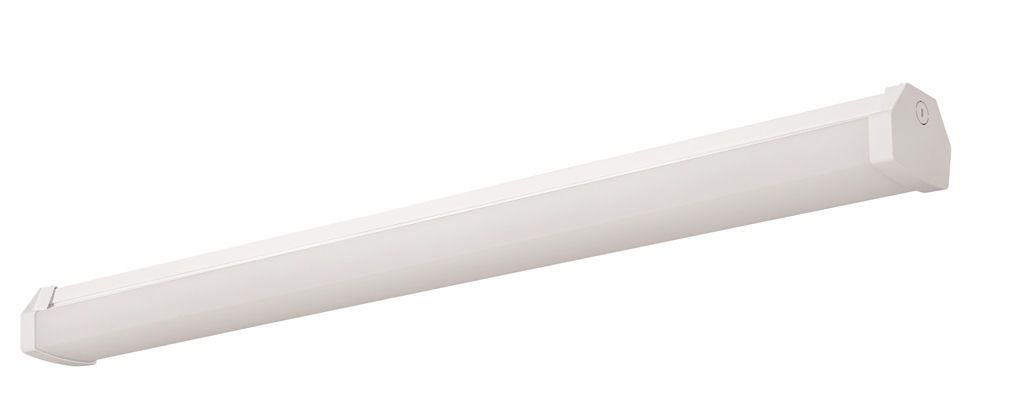

FluxStream LED wraparound is a high performing luminaire delivering smooth diffuse light ideal for light industrial, commercial and residential applications with the unparalleled energy efficiency of Philips LED lighting.
Signify Luminaires Day-Brite Wraparound, Linear, Series: FluxStream FSW, 120 to 277 VAC, 31.4 W Fixture, LED Lamp, 122 Lumens/W, 50000 hr Average Life, 4000 K Color, 80 CRI, 0 to 10 VDC Dimmable Ballast, Frosted Acrylic Diffuser Lens, 4000 Lumens, Surface Suspended Mount, Cold Rolled Steel Housing, Baked White Painted Housing, 4 ft L x 4-1/16 in W x 3-3/8 in H
| Average Life |
: |
50000 hr |
| Ballast Type |
: |
0 to 10 VDC Dimmable |
| Color Rendering Index (CRI) |
: |
80 |
| Color Temperature |
: |
4000 K |
| Dimensions |
: |
4 ft L x 4-1/16 in W x 3-3/8 in H |
| Housing Material |
: |
Cold Rolled Steel |
| Lens Type |
: |
Frosted Acrylic Diffuser |
| Light Output |
: |
122 Lumens/W |
| Lumens |
: |
4000 Lumens |
| Mounting Type |
: |
Surface Suspended |
| Series |
: |
FluxStream FSW |
| Type |
: |
Linear |
| Lamp Type |
: |
LED |
| Fixture Wattage |
: |
31.4 W |
| Voltage Rating |
: |
120 to 277 VAC |
| Housing Finish |
: |
Baked White Painted |
- Compact design for installation in tight spaces
- Frosted acrylic diffuser provides wide light distribution and superior glare control
- Injection molded lens retainers provide positive diffuser retention and easy tool free access to LED boards and driver
- Up to 100000 hr predicted l70 LED lumen maintenance provides long service life to reduce maintenance costs
- Can be surface mounted on ceilings or walls or suspended via chain, pendants or cables
- FSWJ accessory required for continuous row mounting, one FSWJ at each joint
- 7/8 in knock out provided at each end and on base of luminaire
- Enclosed lens minimizes penetration of dust, insects and other debris into the LED compartment
- Integral controls options include sensor mounted in one lens retainer
-
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Philips_Luminaires_FSW230L835_UNV_DIM_Brochure.pdf
-
Instruction/Installation Manual
https://assets.unilogcorp.com/2/ITEM/DOC/Philips_Luminaires_FSW230L835_UNV_DIM_Instruction_Sheet.pdf
-
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_8f5f6cad1f7b128fc7f288d319c1b703fb8f03f9fffc79ab9fe4b2663859f84c.pdf
