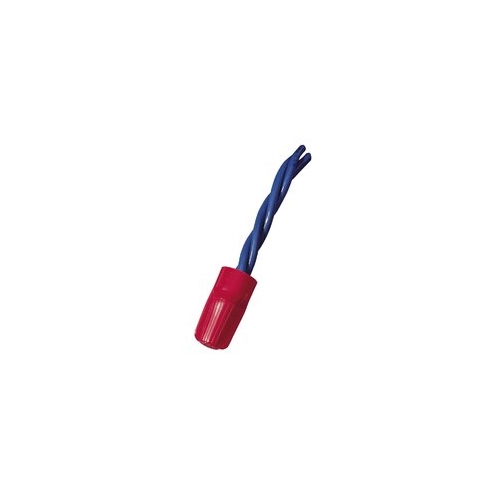

B2-1 Flame-Retardant Wire Connector, Classic Fin/Twist On Shell, Live Action/Square Wire Spring, 22 to 8 AWG Solid/Stranded Wire, Polypropylene
B-CAP® wire connector gets you in those hard-to-reach spots comfortably, especially when you're retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP® a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (red model B2).
BUCHANAN B-CAP® Wire Connector, Flame-Retardant, Series: B2, Classic Fin/Twist On, Live Action/Square Wire, Solid/Stranded Wire, 22 to 8 AWG Wire, 600 VAC, 1/2 in for 16 AWG, 5/8 in for Smaller AWG Wire Strip, 2 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 5 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Red, 0.59 in Dia x 1.22 in H
| Color | : | Red |
| Dimensions | : | 0.59 in Dia x 1.22 in H |
| Series | : | B2 |
| Specifications | : | 1/2 in for 16 AWG, 5/8 in for Smaller AWG Wire Strip, 2 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 5 AWG Maximum Conductor Combination Size |
| Temperature Rating | : | 221 deg F |
| Type | : | Flame-Retardant |
| Voltage Rating | : | 600 VAC |
| Shell Style | : | Classic Fin/Twist On |
| Spring Type | : | Live Action/Square Wire |
| Wire Type | : | Solid/Stranded |
| Wire Size | : | 22 to 8 AWG |
| Material | : | Polypropylene |
