EATON mini-power center incorporates an encapsulated transformer, interior, primary and secondary main circuit breakers in to a single assembly. Mini-power centers are ideally suited for applications where 120 VAC are required at a remote location, such us parking lots, workbenches and temporary power on construction sites.

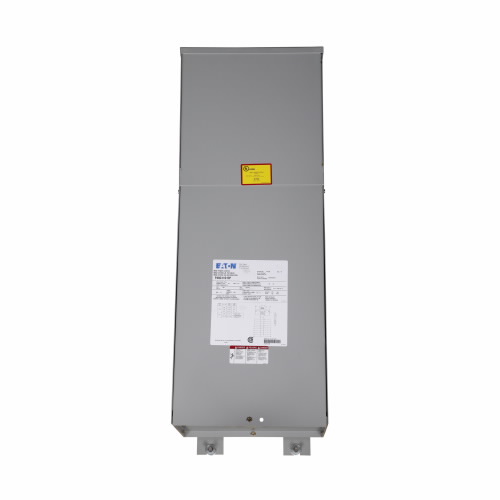

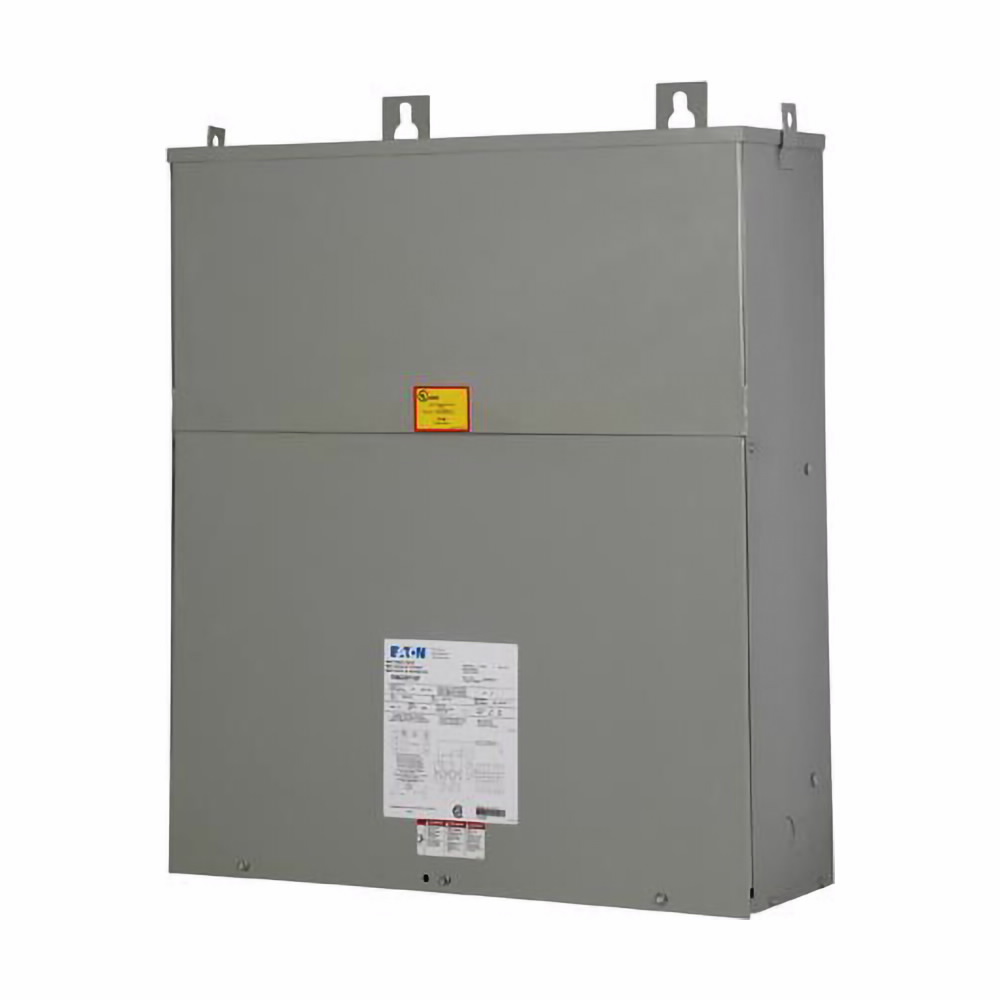

EATON Mini Power Center, 3-in-1 Design Dry, 600 VAC Primary, 120/240 VAC Secondary, 5 kVA, 60 Hz, 1 Phase, 20 A Maximum, 2 Taps, 284 Frame, Class F/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 8.9 in L x 11.9 in W x 29.5 in H

• Padlockable hinged cover prevents removal of feeder breakers
• All interconnecting wiring is performed at the factory, saving on installation costs
• Ground bar is supplied to permit grounding of individual secondary circuits
• Wiring compartment includes ample space for conduit entry
• Cores are grounded with a copper lead
• All live parts enclosed for personnel safety
• Neutral bar is grounded to case
• Branch circuits can be easily added or changed using type BR plug-in breakers and type BR plug-in and type BAB bolt-on
• Short term overload capability as required by ANSI
• Meet NEMA ST-20 sound levels
• Maximum wiring gutter space is provided for ease of wiring
• Simplified design includes two keyholes for easy mounting and leveling
• Aluminum windings
• FDB primary main circuit breaker
• 2 at -5% FCBN taps

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_2085433c09d39127d5e635fa5de0c5275f1aa988c1d6d913130e671e57605123.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_8e1278044cc36933800053c4bfa0bd7faa91750f479d0c916726190956aacc1d.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_8b828be7ad2112b64ce1baabea14f272711edddf87cecbd277c3fedd5525cd23.pdf
