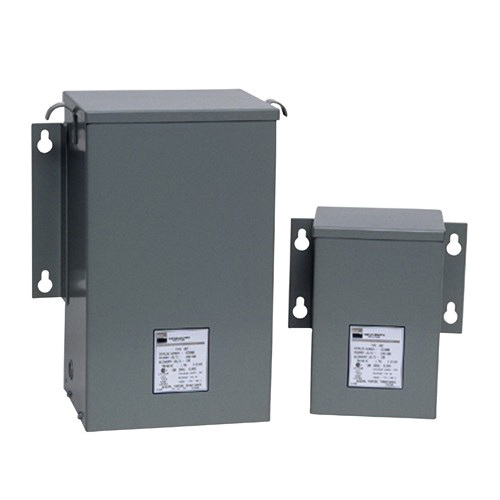

HZ3000A Encapsulated Control Transformer, 230/460/575 VAC Primary, 115/95 VAC Secondary, 3 kVA, 50/60 Hz
| Branch Name | Available |
|---|
The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. This series has 80 deg C rise and have copper winding for industrial applications.
SolaHD Control Transformer, Encapsulated, Series: HSZ, 115/95 VAC Secondary, 3 kVA Power, 50/60 Hz Frequency, Screw Connection, 180 deg C Insulation, NEMA 3R Enclosure, 80 deg C, 17 in H x 14 in W x 9 in D Dimensions
| Connection Type | : | Screw |
| Dimensions | : | 17 in H x 14 in W x 9 in D |
| Enclosure Type | : | NEMA 3R |
| Insulation | : | 180 deg C |
| Series | : | HSZ |
| Temperature Rating | : | 80 deg C |
| Type | : | Encapsulated |
| Primary Voltage | : | 230/460/575 VAC |
| Secondary Voltage | : | 115/95 VAC |
| Power Rating | : | 3 kVA |
| Frequency Rating | : | 50/60 Hz |
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_8c8dab56e91222c8c818376224e3a925644c575d18c97a8ec680b0a25cabfe4a.pdf
Warranty Information
https://assets.unilogcorp.com/2/ITEM/DOC/O_Z_Gedney_ECGJH_50_10_Warranty.pdf
