ACK200 Time Delay Special Purpose Fuse, 200 A, 125 VAC/VDC, 10 kA, Ferrule Body
| Branch Name | Available |
|---|

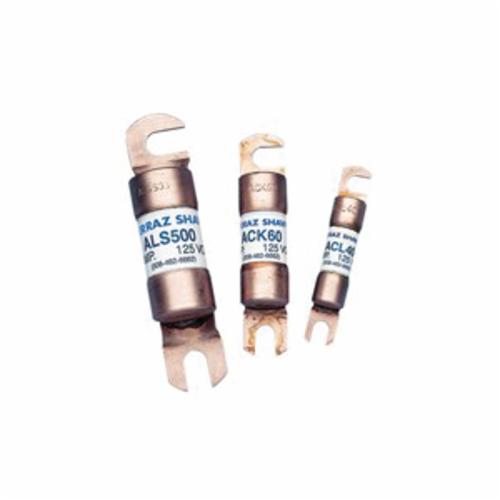

Mersen forklift truck and battery isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work platforms, and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses. this expanded line of forklift truck fuses can fulfill virtually all of your heavy duty circuit protection needs up to 125 VAC or DC. the round body ACK, ACL and ALS fuses combine higher voltage ratings and more ampere ratings with higher interrupting ratings. the flat CNL and CNN style fuses have a lower voltage rating but are also AC and DC, more space saving and have visual "see-thru" indication to show when they have operated.
Ferraz Shawmut Special Purpose Fuse, Time Delay, Series: ACK, Non-Indicating, Non-Rejection, 200 A, 125 VAC/VDC, 10 kA Interrupt, Blade Terminal, Bolt-On Mounting, Ferrule Body, Dual Element, Poly Tube, 1.12 in Dia x 4.72 in L Body
| Body Size | : | 1.12 in Dia x 4.72 in L |
| Element | : | Dual |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Poly Tube |
| Mounting Type | : | Bolt-On |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | ACK |
| Terminal Type | : | Blade |
| Type | : | Time Delay |
| Amperage Rating | : | 200 A |
| Voltage Rating | : | 125 VAC/VDC |
| Interrupt Rating | : | 10 kA |
| Body Type | : | Ferrule |
Specification Sheet
