B-Line 4D22SH-120

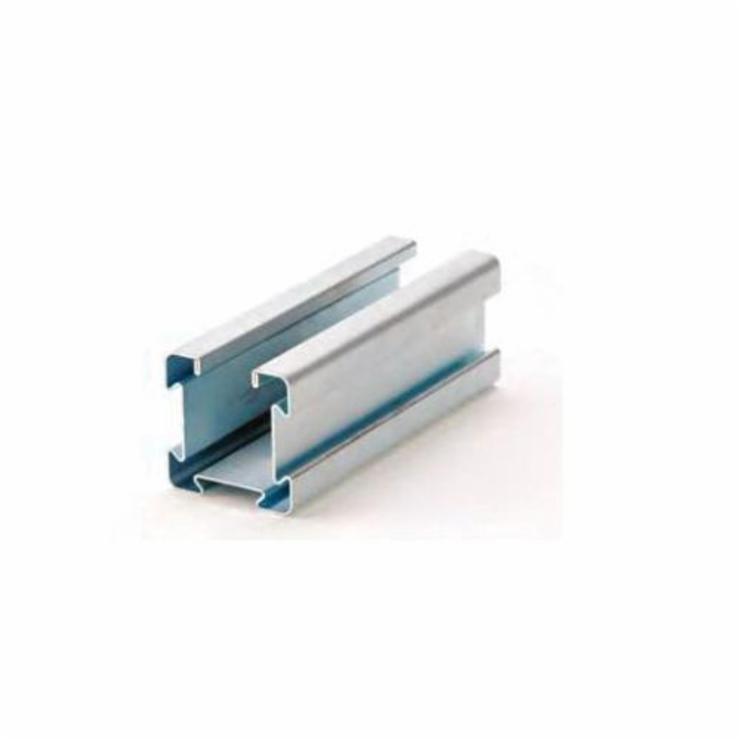

B-Line 4Dimension™ 4D22SH-120 Channel, 5/8 x 1-1/4 in Slots, 2 in Spacing, 18 ga THK, 10 ft L

  • MPN: 4D22SH-120
  • UPC: 799038582980
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
B-Line 4D22SH-120

B-Line 4Dimension™ Channel, 2-1/8 in Width, 10 ft Length, 18 ga Thickness, 5/8 x 1-1/4 in Slot, 2 in Slot Spacing, Low Carbon Steel, Pre-Galvanized

Finish      :      Pre-Galvanized
Material      :      Low Carbon Steel
Width      :      2-1/8 in
Slot Size      :      5/8 x 1-1/4 in
Slot Spacing      :      2 in
Thickness      :      18 ga
Length      :      10 ft
  • 4Dimension™ channel is cold formed on our modern rolling mills from 18 ga low carbon steel
  • A continuous slot with inturned lips and up to three dovetail designed sides provide the ability to make attachments on multiple sides of channel
  • Slotted series of channels offer full flexibility
  • Slots offer wide adjustments in the alignment and bolt sizing
  • Slotted hole pattern
  • 2-1/8 in H
