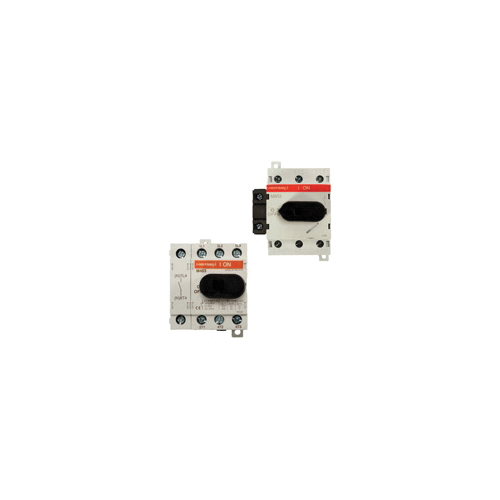

M633 Front Operated Modular Non-Fusible Disconnect Switch, 600 VAC, 63 A, 15/30/2/7 hp, 3 Poles
| Branch Name | Available |
|---|
The M series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 690 VAC (IEC), 600 VAC (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches are modular but also exist in a door-mounting version. A wide assortment of handles, shafts and accessories are available to accommodate any installation requirement.
Ferraz Shawmut Disconnect Switch, Front Operated Modular Non-Fusible, 600 VAC, 63 A, 15 hp, 30 hp, 2 hp, 7 hp, 50 Hz Frequency, 3 Pole, Handle Actuator, Base Mounting, Tunnel Terminal, -40 to 40 deg C, PA66/6
| Actuator Type | : | Handle |
| Frequency Rating | : | 50 Hz |
| Material | : | PA66/6 |
| Mounting Type | : | Base |
| Phase | : | 1/3 |
| Temperature Rating | : | -40 to 40 deg C |
| Terminal Type | : | Tunnel |
| Type | : | Front Operated Modular Non-Fusible |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 63 A |
| Horsepower | : | 15/30/2/7 hp |
| Number of Poles | : | 3 |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Ferraz_Shawmut_M1250E03_Brochure.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_c7e3c4b6ef11cbfc9d2d7d405ad77ed9ca8a32e108551e8a31790b5a2ba65f79.pdf
