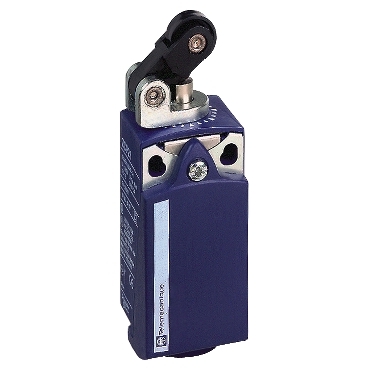

XCKP2121N12 Compact Fixed Light Duty Standard Format Limit Switch, 240VAC, 250VDC, 10 A, 1-Way Horizontal Plastic Roller Actuator, 1NO-1NC Contact, 2 Poles
| Branch Name | Available |
|---|
The most comprehensive offer of limit switches to fit every need. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of positive opening snap action contacts for a simpler and safer machine design.
Schneider Electric OsiSense® Square D™ Limit Switch, Compact Fixed Light Duty Standard Format, Series: XCKP, 240VAC, 250VDC, 10 A, 1NO-1NC Contact Configuration, 3 A at 240 VAC, 0.27 A at 250 VDC Contact, 2 Pole, 25 MOhm Closed Contact Resistance, Linear/Snap Action, 1-Way Horizontal Plastic Roller Actuator, Screw Clamp Connection, NEMA 1/2/4/6/12/13/IP66/IP67 Enclosure, 15000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Plastic, Environmental Conditions: -40 to 158 deg F Storage Temperature
| Action | : | Linear/Snap |
| Closed Contact Resistance | : | 25 MOhm |
| Connection Type | : | Screw Clamp |
| Contact Rating | : | 3 A at 240 VAC, 0.27 A at 250 VDC |
| Enclosure Type | : | NEMA 1/2/4/6/12/13/IP66/IP67 |
| Environmental Conditions | : | -40 to 158 deg F Storage Temperature |
| Material | : | Plastic |
| Operating Cycles | : | 15000000 Cycles |
| Operating Temperature | : | -25 to 70 deg C |
| Series | : | XCKP |
| Type | : | Compact Fixed Light Duty Standard Format |
| Voltage Rating | : | 240VAC, 250VDC |
| Amperage Rating | : | 10 A |
| Actuator | : | 1-Way Horizontal Plastic Roller |
| Contact Configuration | : | 1NO-1NC |
| Number of Poles | : | 2 |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Schneider_Electric_XCKD2106N12_Catalog.pdf
Line Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_2a51f2f5e96f264ca72d31603b187abd07e8df45cc159ef82cb99029d7698662.pdf
RoHS
https://assets.unilogcorp.com/2/ITEM/DOC/Schneider_Electric_XCKP2121N12_RoHS.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_a9569fb92ec1f81b26990408aa951894d8b9ec2c0641be73fab018d7a6e48ce6.pdf
