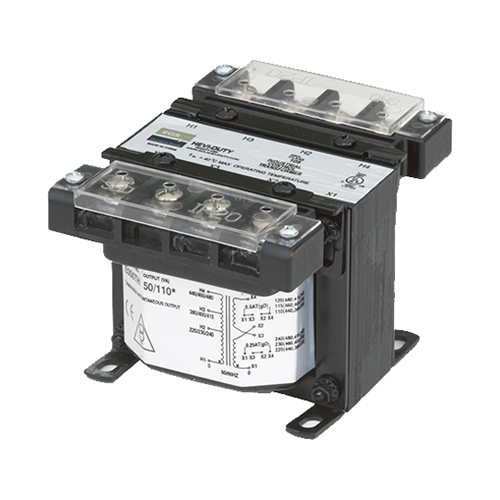

E100TH International Encapsulated Control Transformer, 240/415/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA, 50/60 Hz, 1 ph Phase
| Branch Name | Available |
|---|
Electromagnetic control components demand inrush currents up to 10X the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The international Series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
SolaHD Control Transformer, Encapsulated, Series: International, 240/415/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 0.5, Screw Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 55 deg C, 4.36 in L x 3.39 in W x 2.96 in H Dimensions
| Connection Type | : | Screw |
| Dimensions | : | 4.36 in L x 3.39 in W x 2.96 in H |
| Enclosure Type | : | IP20 |
| Insulation | : | 105 deg C |
| Mounting Type | : | Surface |
| Power Factor | : | 0.5 |
| Series | : | International |
| Temperature Rating | : | 55 deg C |
| Type | : | Encapsulated |
| Primary Voltage | : | 240/415/480 VAC |
| Secondary Voltage | : | 120/240 VAC |
| Power Rating | : | 0.1 kVA |
| Frequency Rating | : | 50/60 Hz |
| Phase | : | 1 ph |
