Non Stock

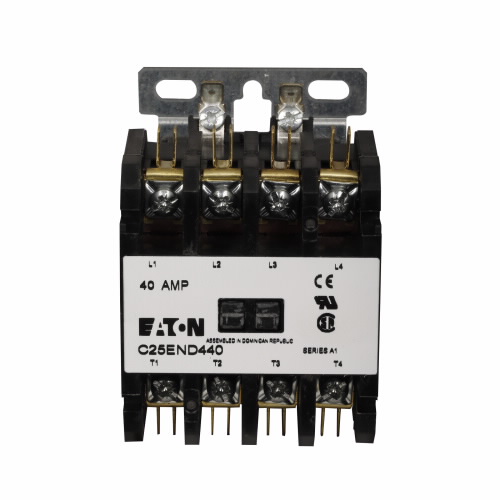

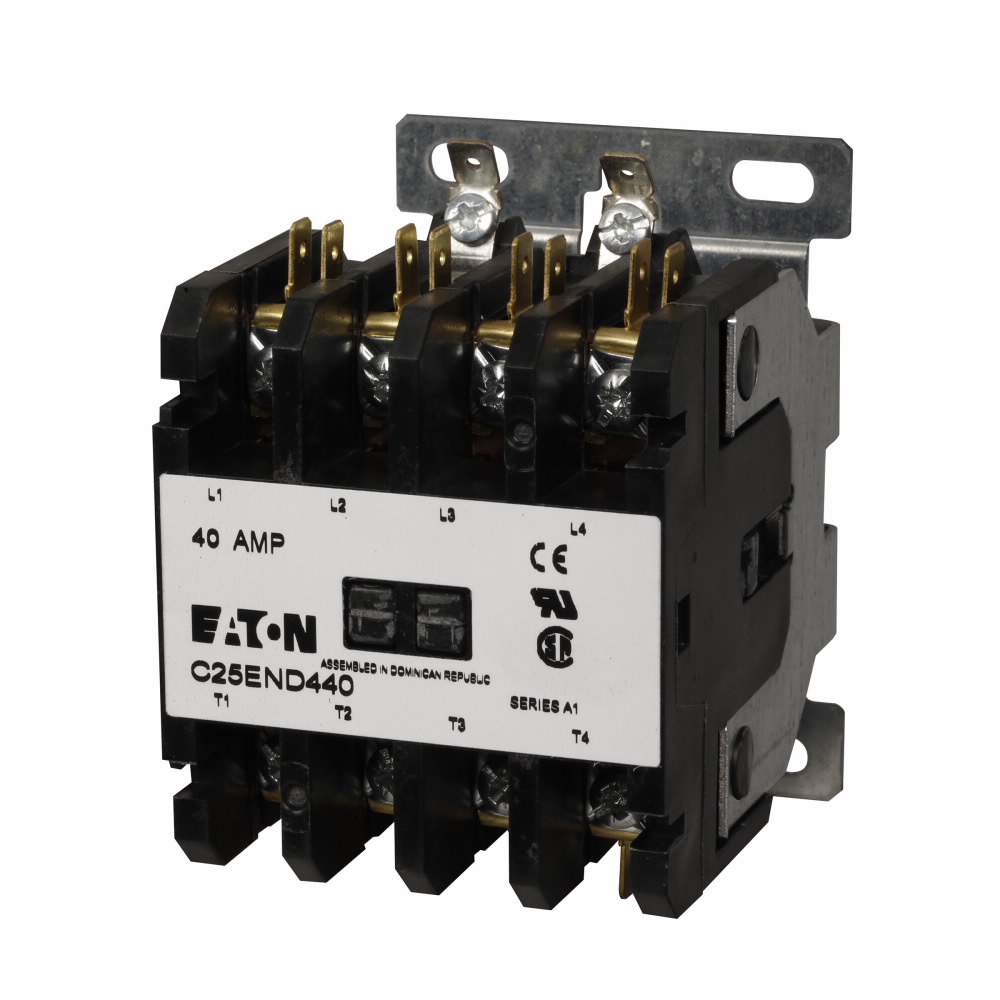

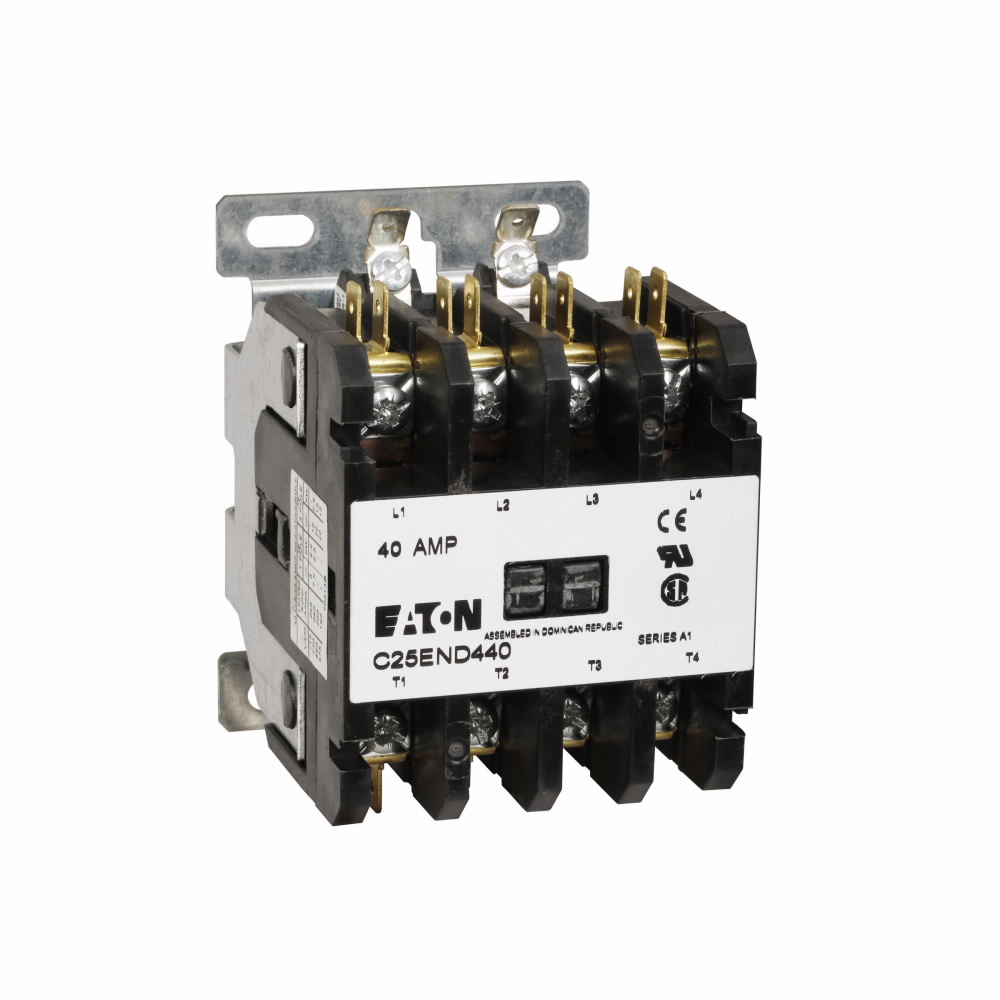

C25ENF440A Non-Reversing Definite Purpose Control Contactor, 110 to 120 VAC V Coil, 40 A Inductive/50 A Resistive, 4 Poles
| Branch Name | Available |
|---|
Eaton offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications. Eaton DP contactors are designed to handle the most challenging installations.
EATON Definite Purpose Control Contactor, Non-Reversing, 110 to 120 VAC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 4 Pole, 50/60 Hz, Quick-Joint, Box Lugs/Quick-Connect Terminal, Open with Metal Mounting Plate, 3.38 in L x 2.68 in W x 3.75 in H
| Connection Type | : | Quick-Joint |
| Dimensions | : | 3.38 in L x 2.68 in W x 3.75 in H |
| Enclosure Type | : | Open with Metal Mounting Plate |
| Frequency Rating | : | 50/60 Hz |
| Terminal Type | : | Box Lugs/Quick-Connect |
| Type | : | Non-Reversing |
| Coil Voltage | : | 110 to 120 VAC |
| Maximum Load Current | : | 40 A Inductive/50 A Resistive |
| Number of Poles | : | 4 |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_e1272c01f2ffa7ac5048a19c36e6e3d76e6b9eee9ab735f8384ec56e6efb6759.pdf
