SDU2024 480va 20a 24v Din Dc Up

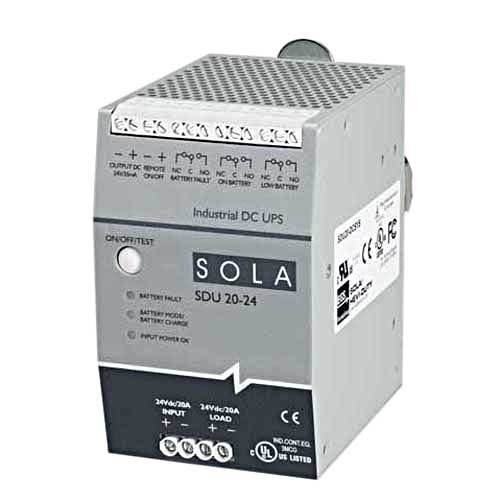

The SolaHD SDU DIN Rail DC UPS is an advanced 24 Vdc uninterruptible power system that combines an industry leading design with a wide operational temperature range and unique installation options. The SDU DC UPS is a powerful, microprocessor controlled UPS that provides protection from power interruptions. With an input voltage range of 22.5 to 30.0 Vdc, the DC UPS is the ideal power back-up solution for your critical connected loads. These units were designed specifically for use with our popular SolaHD SDN Series of power supplies. There is an external battery module that is the only one on the market that allows you to seal the electronics in the panel and maintain safety by placing the battery outside of a non-ventilated enclosure.
SolaHD Uninterruptible Power Supply, DC Uninterruptible, Series: SDU, 22.5 to 30 VDC Input, 24 VDC Output, 20 A Power, 4 min Backup, 30 A Input Fuse, DIN Rail Mounting, Environmental Conditions: -20 to 50 deg C Operating and 20 to 70 deg C Storage, 0 to 95% Humidity, IP20 Enclosure, Lead Acid Battery, 4.55 in L x 3.02 in W x 4.88 in H Dimensions
| Battery | : | Lead Acid |
| Dimensions | : | 4.55 in L x 3.02 in W x 4.88 in H |
| Enclosure Type | : | IP20 |
| Environmental Conditions | : | -20 to 50 deg C Operating and 20 to 70 deg C Storage, 0 to 95% Humidity |
| Input Fuse | : | 30 A |
| Mounting Type | : | DIN Rail |
| Series | : | SDU |
| Type | : | DC Uninterruptible |
| Input Voltage | : | 22.5 to 30 VDC |
| Output Voltage | : | 24 VDC |
| Power Rating | : | 20 A |
| Backup Time | : | 4 min |
