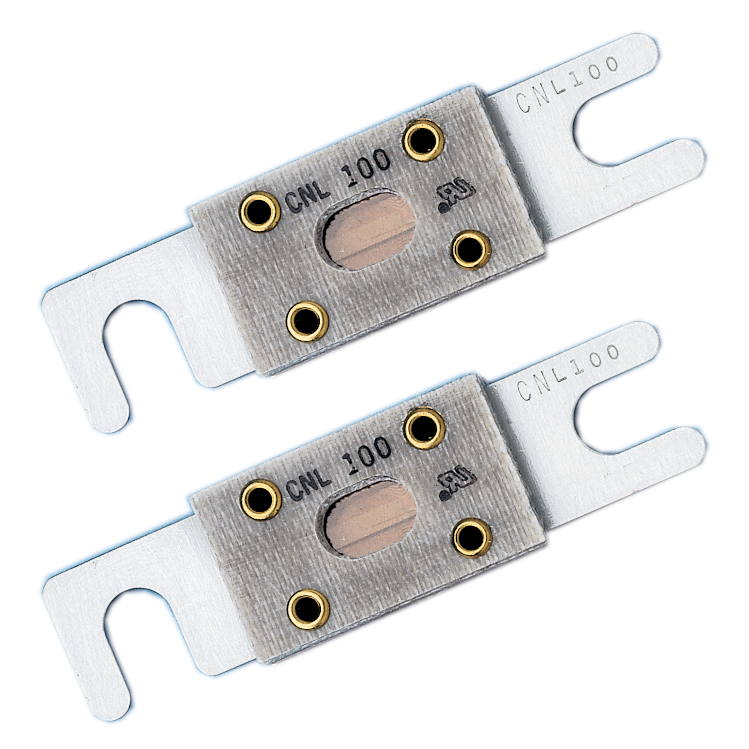

CNL100 Special Purpose Fuse, 100 A, 80 VAC/VDC, 2.5 kA
| Branch Name | Available |
|---|
Mersen forklift truck and battery isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work platforms and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses. this expanded line of forklift truck fuses can fulfill virtually all of your heavy duty circuit protection needs up to 125 VAC or DC. The flat CNL style fuses have a lower voltage rating but are also AC and DC, more space saving and have visual "see-thru" indication to show when they have operated.
Ferraz Shawmut Special Purpose Fuse, Series: CNL, Non-Indicating, Non-Rejection, 100 A, 80 VAC/VDC, 2.5 kA Interrupt, Blade Terminal, Bolt-On Mounting, Single Element, Fiber, 3-3/16 in L x 3/4 in W Body
| Body Size | : | 3-3/16 in L x 3/4 in W |
| Element | : | Single |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Fiber |
| Mounting Type | : | Bolt-On |
| Rejection/Non-Rejection | : | Non-Rejection |
| Series | : | CNL |
| Terminal Type | : | Blade |
| Amperage Rating | : | 100 A |
| Voltage Rating | : | 80 VAC/VDC |
| Interrupt Rating | : | 2.5 kA |
