Non Stock

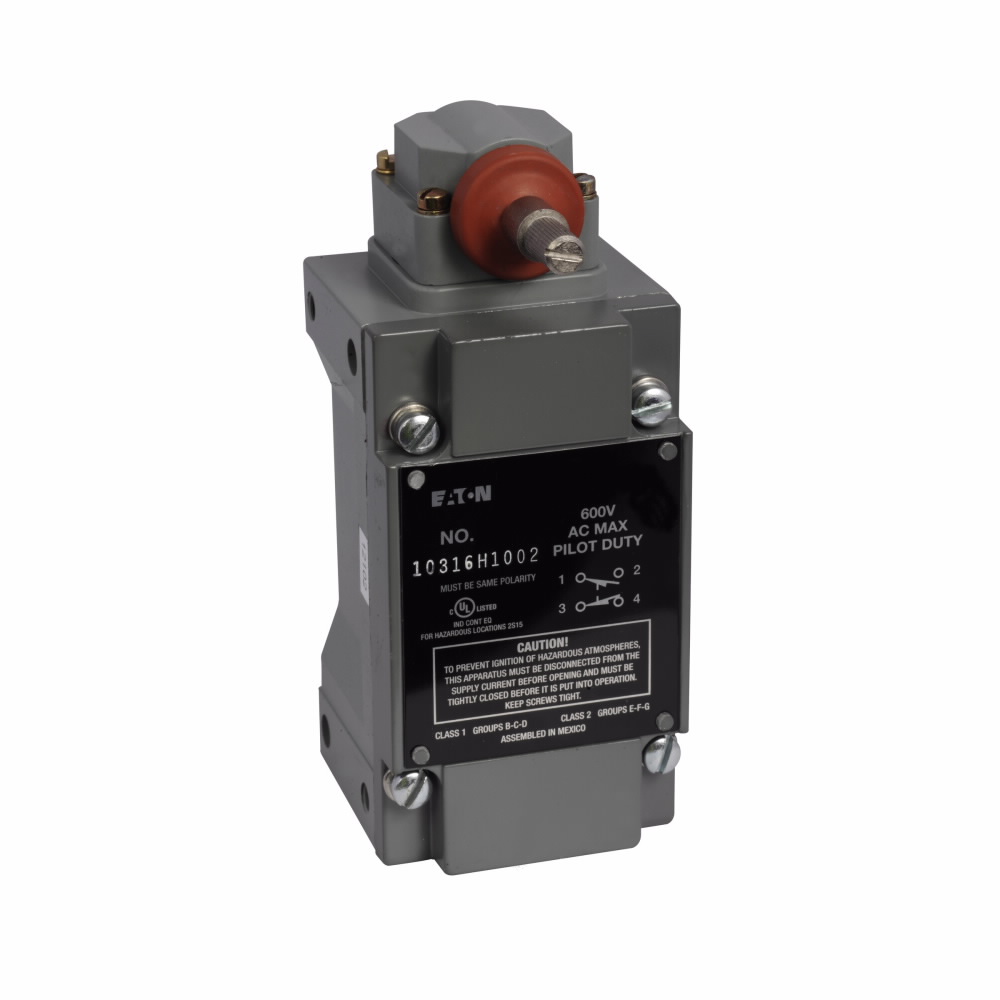

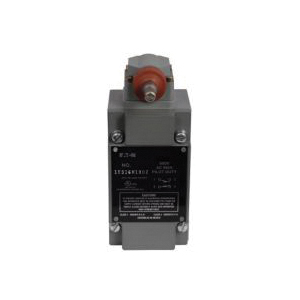

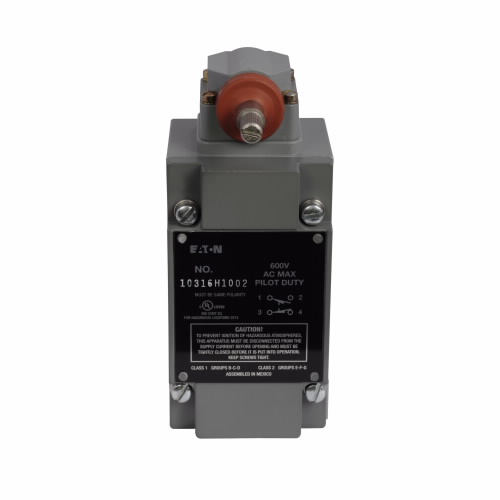

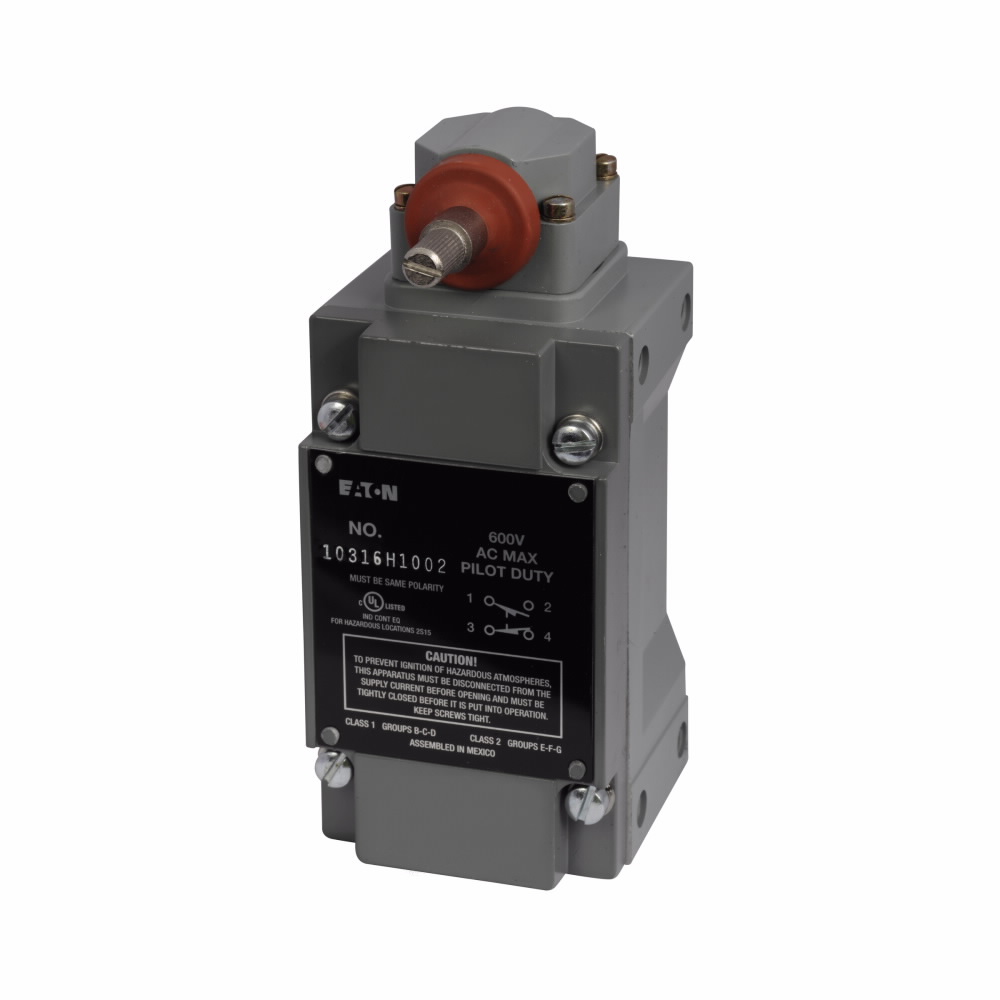

10316H1002 Type LX Complete Assembled Limit Switch With Spring Return Head, 240 VAC/250 VDC, 0.1/10 A, Side Rotary Actuator, 1NO-1NC Contact, 1 Poles
| Branch Name | Available |
|---|
EATON Limit Switch, Type LX Complete Assembled, Series: 10316, 240 VAC, 250 VDC, 0.1/10 A, 1NO-1NC Contact Configuration, 10 A at 240 VAC, 0.1 A at 250 VAC Contact, 1 Pole, Spring Return/Standard Action, Side Rotary Actuator, Screw Connection, NEMA 7/9 Enclosure, Surface Mounting, 5.21 in L x 2.81 in W x 2.26 in H Size, -20 to 200 deg F Operating, Die Cast Aluminum
| Action | : | Spring Return/Standard |
| Connection Type | : | Screw |
| Contact Rating | : | 10 A at 240 VAC, 0.1 A at 250 VAC |
| Enclosure Type | : | NEMA 7/9 |
| Material | : | Die Cast Aluminum |
| Mounting Type | : | Surface |
| Operating Temperature | : | -20 to 200 deg F |
| Series | : | 10316 |
| Size | : | 5.21 in L x 2.81 in W x 2.26 in H |
| Type | : | Type LX Complete Assembled |
| Voltage Rating | : | 240 VAC/250 VDC |
| Amperage Rating | : | 0.1/10 A |
| Actuator | : | Side Rotary |
| Contact Configuration | : | 1NO-1NC |
| Number of Poles | : | 1 |
